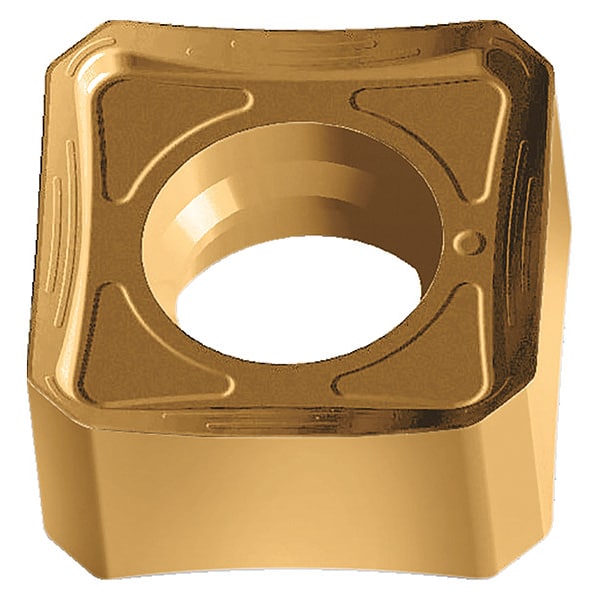

Milling Insert, Square, Negative, 0 Degrees, SNGX, WKK25S
| Item | Square Milling Insert |
|---|---|
| Insert Style | SNGX |
| Insert Size | 904 |
| Corner Radius | 1/64 in |
| Chip-Breaker | Yes |
| Rake | Negative |
| Inscribed Circle | 3/8 in |
| ISO Number | SNGX0904ANN-F57 |
| Hole Type | With Hole |
| Shape | Square |
| Thickness | 0.185 in |
| Material - Machining | Carbide |
| Manufacturer Grade | WKK25S |
| Number of Cutting Edges | 4 |
| Width | 3/8 in |
| Measurement System | Fractional Inch |
| ANSI Code | SNGX0904ANN-F57 |
| Chip-Breaker Code | F57 |
| Clearance Angle | 0 deg |
| Finish - Machining | TiAlN+Al2O3+ |
| Cutting Edge Length | 9.52 mm |
| Package Quantity | 1 |
