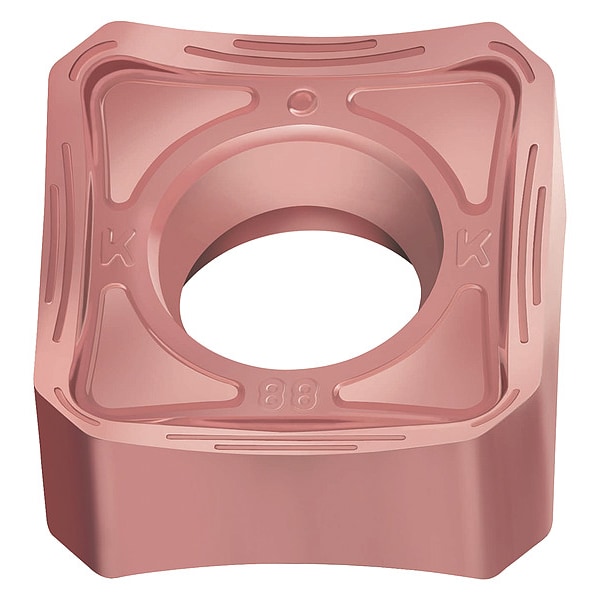

Milling Insert, Square, Negative, 0 Degrees, SNHX, WK10
| Item | Square Milling Insert |
|---|---|
| Insert Style | SNHX |
| Insert Size | 904 |
| Corner Radius | 1/64 in |
| Chip-Breaker | Yes |
| ISO Number | SNHX0904ANN-K88 |
| Inscribed Circle | 3/8 in |
| Rake | Negative |
| Width | 3/8 in |
| Primary Material Application | Non-Ferrous |
| Material - Machining | Carbide |
| Chip-Breaker Code | K88 |
| Finish - Machining | Bright |
| Primary Material Application ISO Code | N |
| Manufacturer Grade | WK10 |
| Cutting Edge Length | 9.52 mm |
| Hole Type | With Hole |
| Measurement System | Fractional Inch |
| Shape | Square |
| ANSI Code | SNHX0904ANN-K88 |
| Clearance Angle | 0 deg |
| Thickness | 0.184 in |
| Number of Cutting Edges | 4 |
| Package Quantity | 1 |
