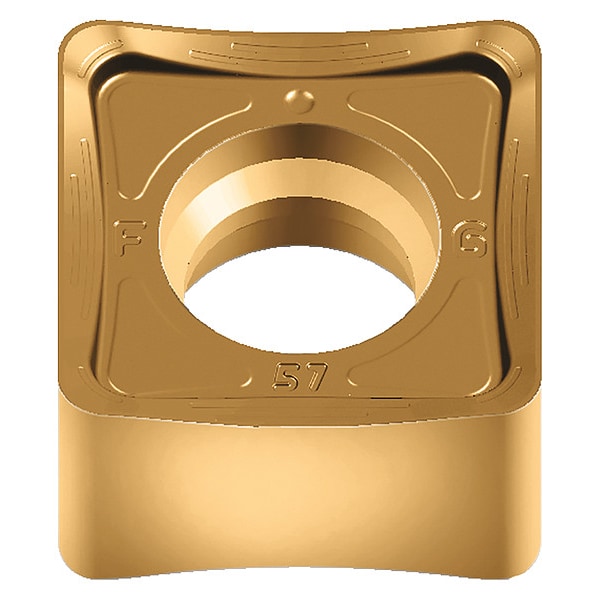

Milling Insert, Square, Negative, 0 Degrees, SNMX, WKP35G
| Item | Square Milling Insert |
|---|---|
| Insert Style | SNMX |
| Insert Size | 120,512 |
| Corner Radius | 3/64 in |
| Chip-Breaker | Yes |
| Rake | Negative |
| Inscribed Circle | 1/2 in |
| ISO Number | SNMX120512-F57 |
| Thickness | 0.217 in |
| Cutting Edge Length | 12.7 mm |
| Manufacturer Grade | WKP35G |
| Measurement System | Fractional Inch |
| Clearance Angle | 0 deg |
| Hole Type | With Hole |
| Chip-Breaker Code | F57 |
| Number of Cutting Edges | 4 |
| Shape | Square |
| Finish - Machining | TiAlN+TiN |
| ANSI Code | SNMX120512-F57 |
| Package Quantity | 1 |
