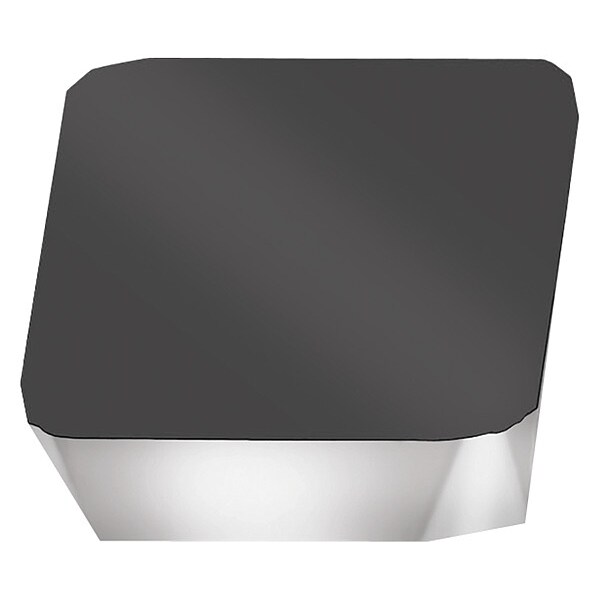

Milling Insert, Square, Positive, 11 Degrees, SPKT, WKP35S
| Item | Square Milling Insert |
|---|---|
| Insert Style | SPKT |
| Insert Size | 1,203 |
| Chip-Breaker | Yes |
| Rake | Positive |
| Inscribed Circle | 1/2 in |
| ISO Number | SPKN1203EDR |
| Number of Cutting Edges | 4 |
| Thickness | 1/8 in |
| Manufacturer Grade | WKP35S |
| Primary Material Application ISO Code | P, K |
| Clearance Angle | 11 deg |
| Measurement System | Fractional Inch |
| Shape | Square |
| Chip-Breaker Code | A57 |
| Finish - Machining | TiCN+Al2O3+ |
| Width | 1/2 in |
| Coating Process | CVD |
| Material - Machining | Carbide |
| Cutting Edge Length | 12.7 mm |
| Primary Material Application | Cast Iron, Steel |
| ANSI Code | SPKN1203EDR |
| Hole Type | No Hole |
| Package Quantity | 1 |
