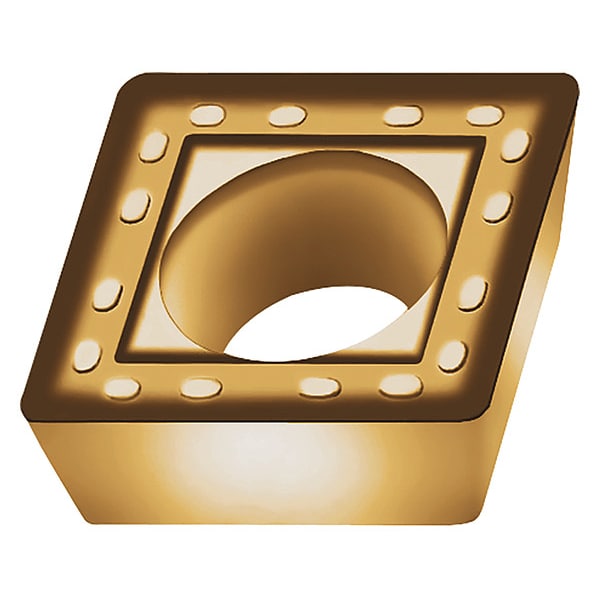

Milling Insert, Square, Positive, 11 Degrees, SPMT, WKP35G
| Item | Square Milling Insert |
|---|---|
| Insert Style | SPMT |
| Insert Size | 120,408 |
| Corner Radius | 1/32 in |
| ISO Number | SPMT120408-F55 |
| Inscribed Circle | 1/2 in |
| Rake | Positive |
| Chip-Breaker | Yes |
| Number of Cutting Edges | 4 |
| Measurement System | Fractional Inch |
| Chip-Breaker Code | F55 |
| Shape | Square |
| ANSI Code | SPMT120408-F55 |
| Thickness | 3/16 in |
| Clearance Angle | 11 deg |
| Manufacturer Grade | WKP35G |
| Cutting Edge Length | 12.7 mm |
| Hole Type | With Hole |
| Finish - Machining | TiAlN+TiN |
| Package Quantity | 1 |
