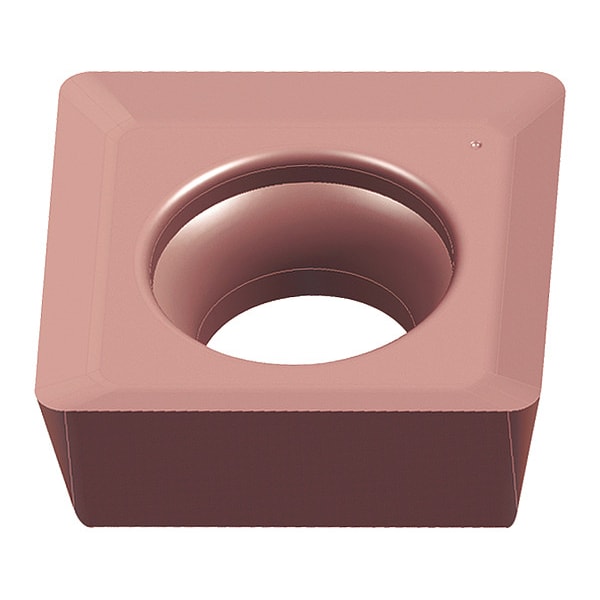

Milling Insert, Square, Positive, 11 Degrees, SPMW, WKM
| Item | Square Milling Insert |
|---|---|
| Insert Style | SPMW |
| Insert Size | 70,308 |
| Corner Radius | 1/32 in |
| ISO Number | SPMW070308-A88 |
| Rake | Positive |
| Inscribed Circle | 0.314 in |
| Chip-Breaker | Yes |
| Shape | Square |
| ANSI Code | SPMW070308-A88 |
| Manufacturer Grade | WKM |
| Number of Cutting Edges | 4 |
| Width | 0.314 in |
| Cutting Edge Length | 7.94 mm |
| Primary Material Application ISO Code | K |
| Clearance Angle | 11 deg |
| Thickness | 1/8 in |
| Finish - Machining | Bright |
| Primary Material Application | Cast Iron |
| Chip-Breaker Code | A88 |
| Hole Type | With Hole |
| Package Quantity | 1 |
