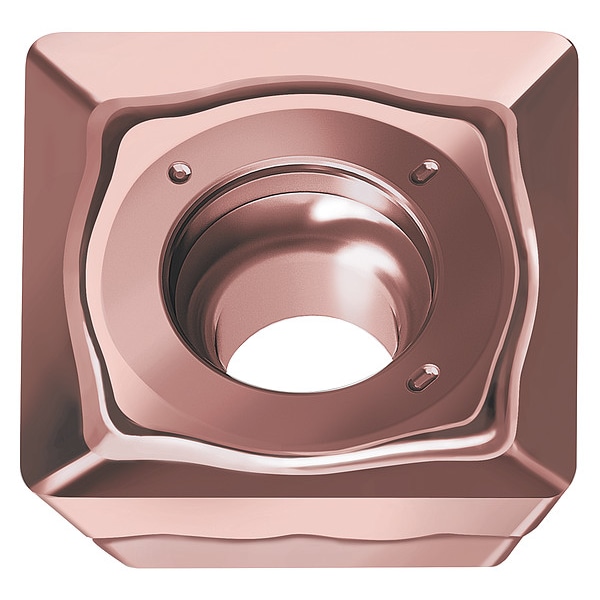

Milling Insert, Square, Positive, 15 Degrees, SDHT, WXN15
| Item | Square Milling Insert |
|---|---|
| Insert Style | SDHT |
| Insert Size | 09T308 |
| Corner Radius | 1/32 in |
| Inscribed Circle | 3/8 in |
| ISO Number | SDHT09T308-G88 |
| Chip-Breaker | Yes |
| Rake | Positive |
| Cutting Edge Length | 9.52 mm |
| Measurement System | Fractional Inch |
| Number of Cutting Edges | 4 |
| Hole Type | With Hole |
| Material - Machining | Carbide |
| Thickness | 5/32 in |
| ANSI Code | SDHT09T308-G88 |
| Finish - Machining | TiCN+ |
| Chip-Breaker Code | G88 |
| Clearance Angle | 15 deg |
| Manufacturer Grade | WXN15 |
| Primary Material Application ISO Code | N |
| Primary Material Application | Non-Ferrous |
| Shape | Square |
| Coating Process | PVD |
| Package Quantity | 1 |
