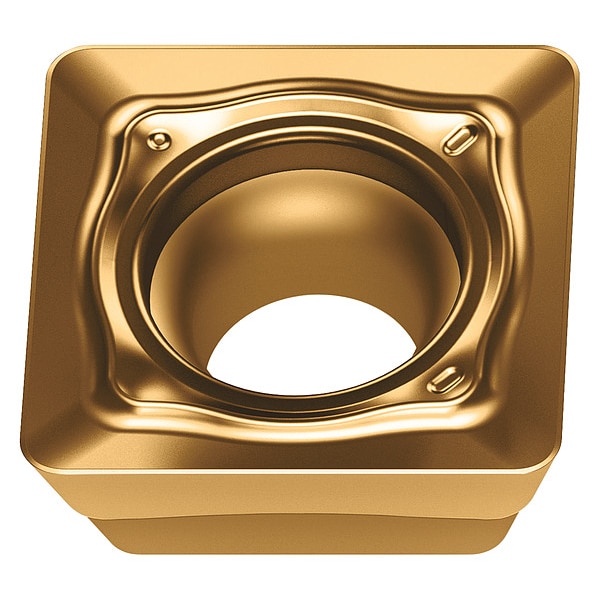

Milling Insert, Square, Positive, 15 Degrees, SDMT, WKP25S
| Item | Square Milling Insert |
|---|---|
| Insert Style | SDMT |
| Insert Size | 120,408 |
| Corner Radius | 1/32 in |
| Chip-Breaker | Yes |
| Rake | Positive |
| Inscribed Circle | 1/2 in |
| ISO Number | SDMT120408-D51 |
| Measurement System | Fractional Inch |
| Chip-Breaker Code | D51 |
| Hole Type | With Hole |
| Finish - Machining | TiCN+Al2O3+ |
| Thickness | 3/16 in |
| ANSI Code | SDMT120408-D51 |
| Clearance Angle | 15 deg |
| Coating Process | CVD |
| Primary Material Application ISO Code | P, K |
| Material - Machining | Carbide |
| Cutting Edge Length | 12.7 mm |
| Primary Material Application | Cast Iron, Steel |
| Manufacturer Grade | WKP25S |
| Number of Cutting Edges | 4 |
| Shape | Square |
| Package Quantity | 1 |
