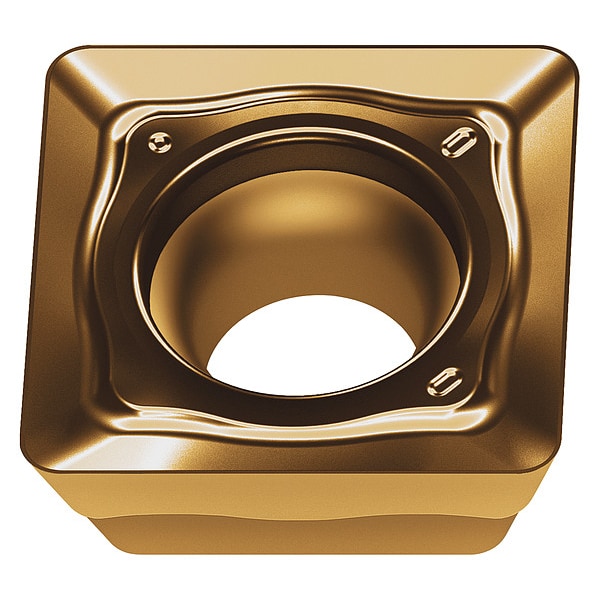

Milling Insert, Square, Positive, 15 Degrees, SDMT, WKP35G
| Item | Square Milling Insert |
|---|---|
| Insert Style | SDMT |
| Insert Size | 09T304 |
| Corner Radius | 1/64 in |
| Rake | Positive |
| Inscribed Circle | 3/8 in |
| ISO Number | SDMT09T304-F57 |
| Chip-Breaker | Yes |
| Finish - Machining | TiAlN+TiN |
| Manufacturer Grade | WKP35G |
| Shape | Square |
| Hole Type | With Hole |
| ANSI Code | SDMT09T304-F57 |
| Thickness | 5/32 in |
| Number of Cutting Edges | 4 |
| Cutting Edge Length | 9.52 mm |
| Clearance Angle | 15 deg |
| Chip-Breaker Code | F57 |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
