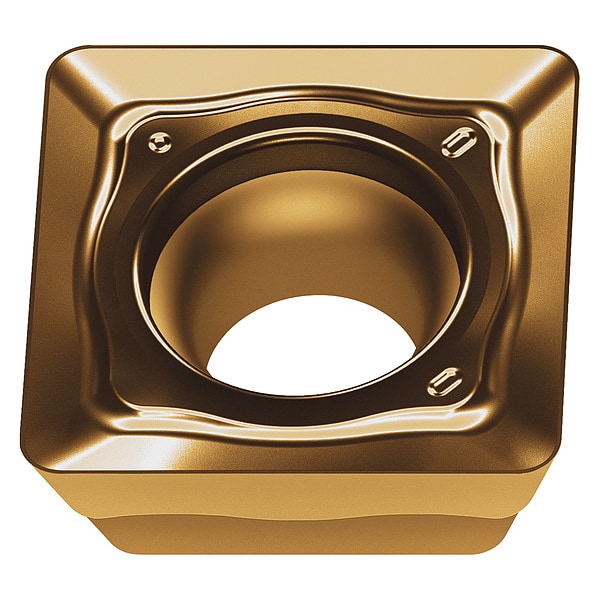

Milling Insert, Square, Positive, 15 Degrees, SDMT, WKP35S
| Item | Square Milling Insert |
|---|---|
| Insert Style | SDMT |
| Insert Size | 09T320 |
| Corner Radius | 0.079 in |
| Inscribed Circle | 3/8 in |
| ISO Number | SDMT09T320-F57 |
| Chip-Breaker | Yes |
| Rake | Positive |
| Number of Cutting Edges | 4 |
| Cutting Edge Length | 9.52 mm |
| ANSI Code | SDMT09T320-F57 |
| Chip-Breaker Code | F57 |
| Manufacturer Grade | WKP35S |
| Hole Type | With Hole |
| Shape | Square |
| Material - Machining | Carbide |
| Primary Material Application ISO Code | P, K |
| Coating Process | CVD |
| Measurement System | Fractional Inch |
| Finish - Machining | TiCN+Al2O3+ |
| Thickness | 5/32 in |
| Clearance Angle | 15 deg |
| Primary Material Application | Cast Iron, Steel |
| Package Quantity | 1 |
