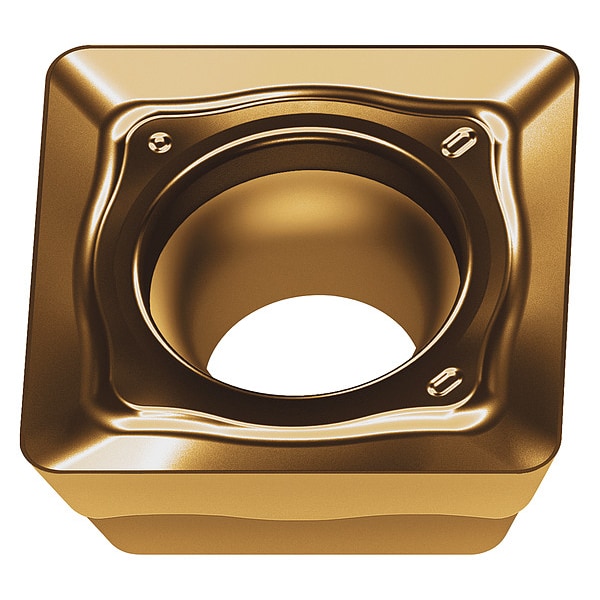

Milling Insert, Square, Positive, 15 Degrees, SDMT, WSM45X
| Item | Square Milling Insert |
|---|---|
| Insert Style | SDMT |
| Insert Size | 06T212 |
| Corner Radius | 3/64 in |
| Rake | Positive |
| ISO Number | SDMT06T212-F57 |
| Inscribed Circle | 1/4 in |
| Chip-Breaker | Yes |
| ANSI Code | SDMT06T212-F57 |
| Coating Process | CVD |
| Hole Type | With Hole |
| Shape | Square |
| Measurement System | Fractional Inch |
| Cutting Edge Length | 6.35 mm |
| Material - Machining | Carbide |
| Number of Cutting Edges | 4 |
| Clearance Angle | 15 deg |
| Finish - Machining | TiCN+Al2O3+ |
| Chip-Breaker Code | F57 |
| Manufacturer Grade | WSM45X |
| Thickness | 7/64 in |
| Package Quantity | 1 |
