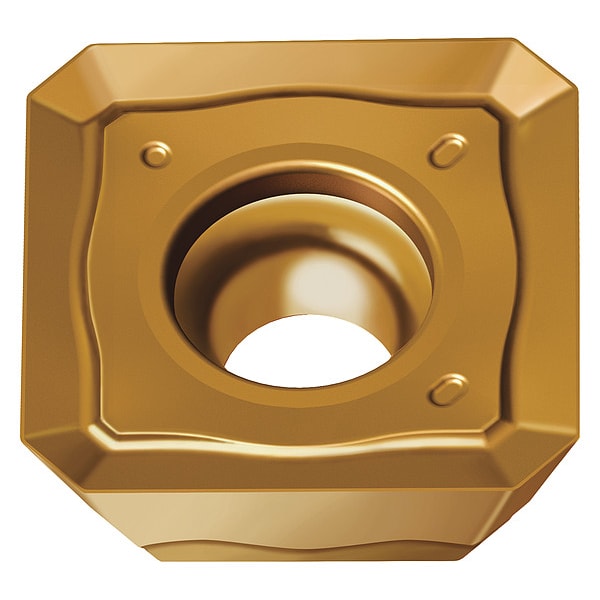

Milling Insert, Square, Positive, 15 Degrees, SDMT, WSM45X
| Item | Square Milling Insert |
|---|---|
| Insert Style | SDMT |
| Insert Size | 1,204 |
| Corner Radius | 0.012 in |
| Chip-Breaker | Yes |
| Inscribed Circle | 1/2 in |
| Rake | Positive |
| ISO Number | SDMT1204AZN-F57 |
| Material - Machining | Carbide |
| Thickness | 3/16 in |
| Clearance Angle | 15 deg |
| Cutting Edge Length | 12.7 mm |
| Hole Type | With Hole |
| Measurement System | Fractional Inch |
| Manufacturer Grade | WSM45X |
| ANSI Code | SDMT1204AZN-F57 |
| Shape | Square |
| Coating Process | CVD |
| Number of Cutting Edges | 4 |
| Finish - Machining | TiCN+Al2O3+ |
| Chip-Breaker Code | F57 |
| Package Quantity | 1 |
