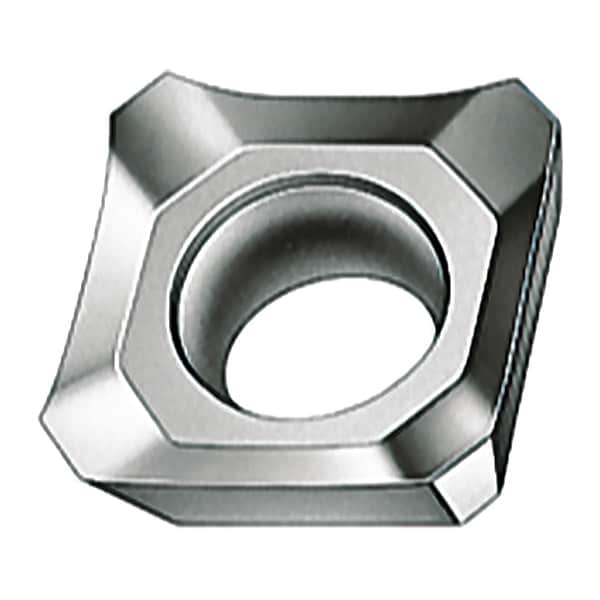

Milling Insert, Square, Positive, 20 Degrees, SEHT, WK10
| Item | Square Milling Insert |
|---|---|
| Insert Style | SEHT |
| Insert Size | 1,204 |
| Corner Radius | 1/32 in |
| Inscribed Circle | 1/2 in |
| Chip-Breaker | Yes |
| ISO Number | SEHT1204AFN-K88 |
| Rake | Positive |
| Hole Type | With Hole |
| Material - Machining | Carbide |
| Chip-Breaker Code | K88 |
| Number of Cutting Edges | 4 |
| Thickness | 3/16 in |
| Cutting Edge Length | 12.7 mm |
| Shape | Square |
| Primary Material Application ISO Code | N |
| Measurement System | Fractional Inch |
| ANSI Code | SEHT1204AFN-K88 |
| Finish - Machining | Bright |
| Manufacturer Grade | WK10 |
| Clearance Angle | 20 deg |
| Primary Material Application | Non-Ferrous |
| Package Quantity | 1 |
