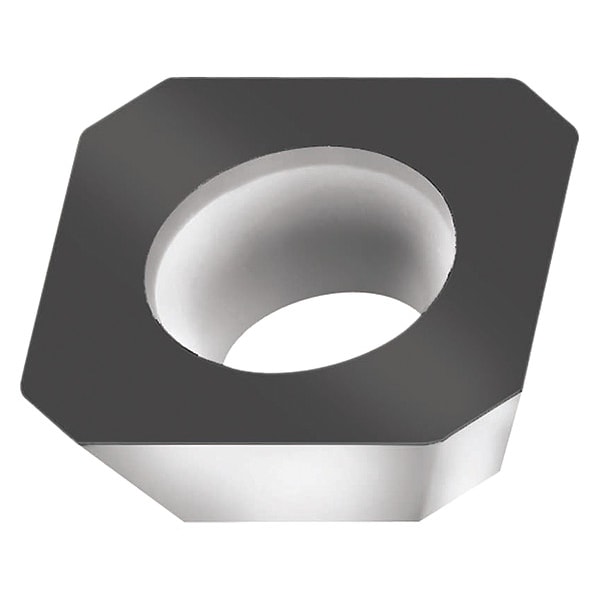

Milling Insert, Square, Positive, 20 Degrees, SEHW, WKP35S
| Item | Square Milling Insert |
|---|---|
| Insert Style | SEHW |
| Insert Size | 1,504 |
| Corner Radius | 1/32 in |
| Rake | Positive |
| ISO Number | SEHW1504AFN |
| Inscribed Circle | 5/8 in |
| Chip-Breaker | Yes |
| Primary Material Application ISO Code | P, K |
| Number of Cutting Edges | 4 |
| Coating Process | CVD |
| Shape | Square |
| Finish - Machining | TiCN+Al2O3+ |
| Manufacturer Grade | WKP35S |
| Material - Machining | Carbide |
| Thickness | 3/16 in |
| Primary Material Application | Cast Iron, Steel |
| ANSI Code | SEHW1504AFN |
| Cutting Edge Length | 15.9 mm |
| Hole Type | With Hole |
| Chip-Breaker Code | A57 |
| Measurement System | Fractional Inch |
| Clearance Angle | 20 deg |
| Package Quantity | 1 |
