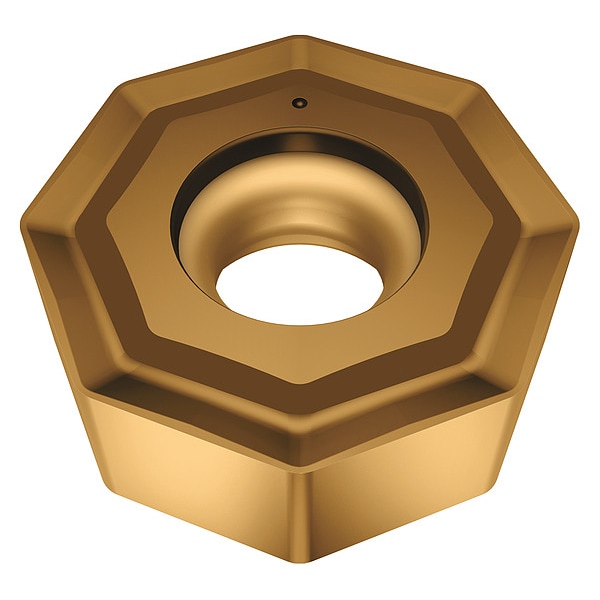

Octagon Milling Insert, 1/2 in, ONMU, 1/32 in
| Item | Octagon Milling Insert |
|---|---|
| Insert Style | ONMU |
| Inscribed Circle | 1/2 in |
| Insert Size | 50,408 |
| Chip-Breaker | Yes |
| Corner Radius | 1/32 in |
| Rake | Negative |
| ISO Number | ONMU050408-D57 |
| Chip-Breaker Code | D57 |
| Finish - Machining | TiAlN+TiN |
| Shape | Octagon |
| ANSI Code | ONMU050408-D57 |
| Thickness | 0.191 in |
| Measurement System | Fractional Inch |
| Clearance Angle | 0 deg |
| Manufacturer Grade | WKP35G |
| Cutting Edge Length | 5.26 mm |
| Number of Cutting Edges | 8 |
| Package Quantity | 1 |
