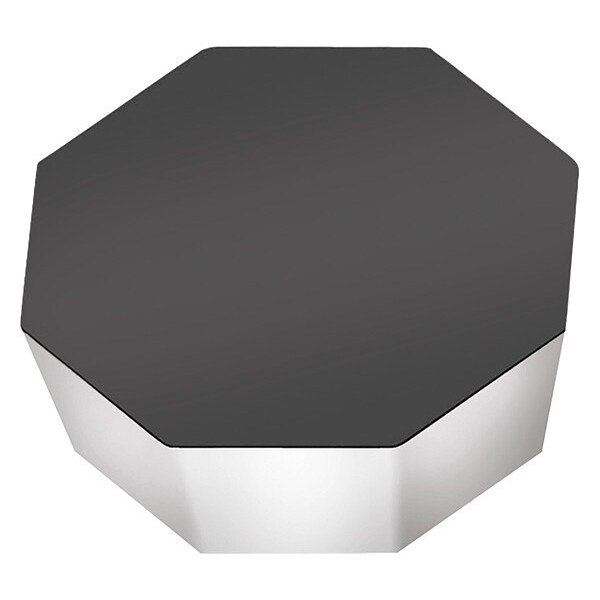

Octagon Milling Insert, 1/2 in, OPHN, 1/64 in
| Item | Octagon Milling Insert |
|---|---|
| Insert Style | OPHN |
| Inscribed Circle | 1/2 in |
| Insert Size | 504 |
| Chip-Breaker | Yes |
| Corner Radius | 1/64 in |
| Rake | Positive |
| ISO Number | OPHN0504ZZN-A57 |
| Cutting Edge Length | 12.7 mm |
| Finish - Machining | TiCN+Al2O3+ |
| Chip-Breaker Code | A57 |
| Material - Machining | Carbide |
| Hole Type | No Hole |
| Manufacturer Grade | WKP25S |
| Coating Process | CVD |
| ANSI Code | OPHN0504ZZN-A57 |
| Measurement System | Fractional Inch |
| Primary Material Application ISO Code | P, K |
| Clearance Angle | 11 deg |
| Primary Material Application | Cast Iron, Steel |
| Thickness | 3/16 in |
| Number of Cutting Edges | 8 |
| Shape | Octagon |
| Package Quantity | 1 |
