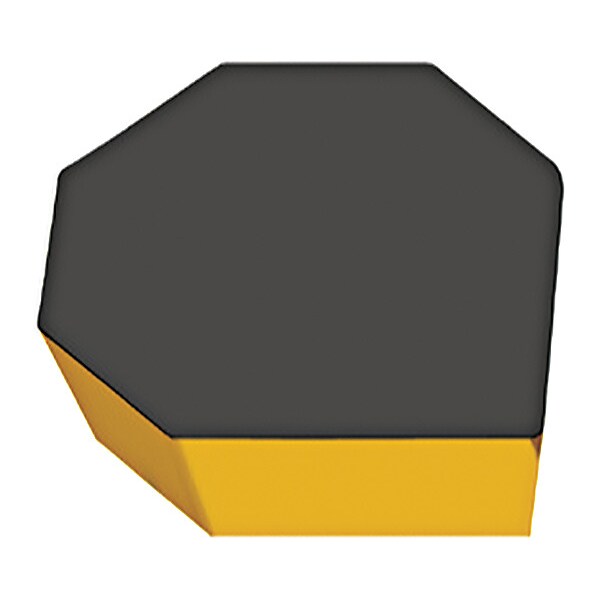

Octagon Milling Insert, 1/2 in, OPHX, 0.0710 in
| Item | Octagon Milling Insert |
|---|---|
| Insert Style | OPHX |
| Inscribed Circle | 1/2 in |
| Insert Size | 504 |
| Chip-Breaker | Yes |
| Corner Radius | 0.071 in |
| Rake | Positive |
| ISO Number | OPHX0504ZZR-A57 |
| Width | 1/2 in |
| Clearance Angle | 11 deg |
| ANSI Code | OPHX0504ZZR-A57 |
| Primary Material Application | Cast Iron |
| Shape | Octagon |
| Coating Process | CVD |
| Finish - Machining | TiCN+Al2O3+ |
| Manufacturer Grade | WAK15 |
| Hole Type | No Hole |
| Number of Cutting Edges | 1 |
| Thickness | 3/16 in |
| Measurement System | Fractional Inch |
| Chip-Breaker Code | A57 |
| Cutting Application | Finishing |
| Cutting Edge Length | 12.7 mm |
| Primary Material Application ISO Code | K |
| Material - Machining | Carbide |
| Package Quantity | 1 |
