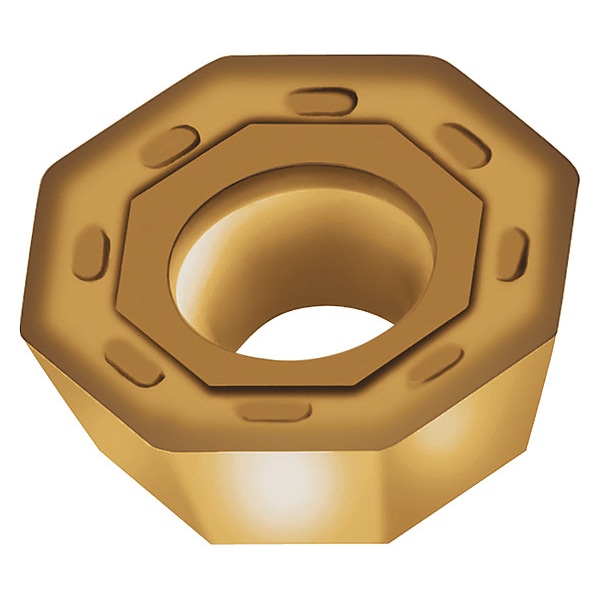

Octagon Milling Insert, 5/8 in, ODMT, 1/32 in
| Item | Octagon Milling Insert |
|---|---|
| Insert Style | ODMT |
| Inscribed Circle | 5/8 in |
| Insert Size | 605 |
| Chip-Breaker | Yes |
| Corner Radius | 1/32 in |
| Rake | Positive |
| ISO Number | ODMT0605ZZN-D57 |
| Measurement System | Fractional Inch |
| Number of Cutting Edges | 8 |
| Coating Process | CVD |
| Clearance Angle | 15 deg |
| Chip-Breaker Code | D57 |
| Cutting Edge Length | 6.58 mm |
| Finish - Machining | TiCN+Al2O3+ |
| Thickness | 0.219 in |
| Manufacturer Grade | WSM45X |
| ANSI Code | ODMT0605ZZN-D57 |
| Material - Machining | Carbide |
| Hole Type | With Hole |
| Shape | Octagon |
| Package Quantity | 1 |
