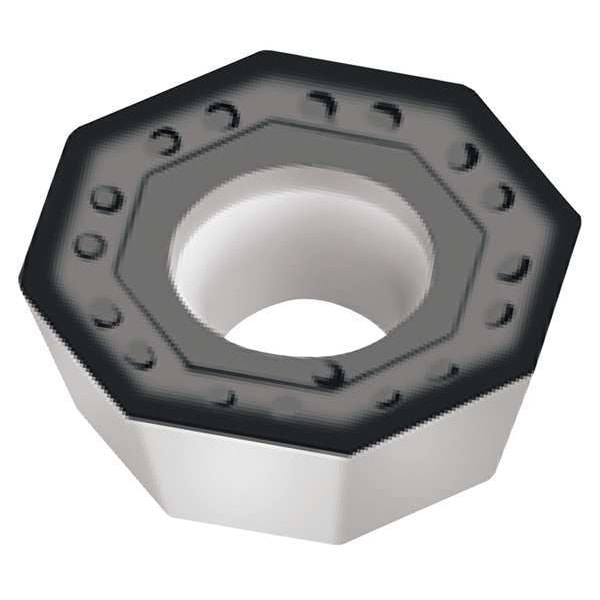

Octagon ODHT Carbide
| Item | Octagon Milling Insert |
|---|---|
| Insert Style | ODHT |
| Insert Shape | Octagon |
| Insert Size | 504 |
| Insert Material | Carbide |
| Corner Radius | 0.8 mm |
| Nose Radius | 0.031 in |
| Hardened (H) Compatibility | No |
| Mounting Style | Screw Held |
| For Use With | F4080 Cutter |
| Chip-Breaker | Yes |
| Grade | WK10 |
| Insert Application | Roughing |
| Rake | Positive |
| Inscribed Circle | 1/2 in |
| Cutting Direction | Right Hand |
| Non Ferrous (N) Compatibility | Yes |
| Coating | Uncoated |
| Workpiece Compatibility | Nonferrous (N) |
| Stainless (M) Compatibility | No |
| No. of Edges | 8 |
| ANSI Number | ODHT0504ZZN-G88 WK10 |
| Steel (P) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Insert Thickness | 0.187 in |
| ISO Number | ODHT0504ZZN-G88 WK10 |
| Measurement System | Metric |
| Primary Material Application ISO Code | N |
| Cutting Application | Roughing |
| Manufacturer Grade | WK10 |
| Included Angle | 135 deg |
| Cutting Edge Length | 5.26 mm |
| Wiper Insert | Yes |
| Chip-Breaker Style | 20 deg (Chipbreaker Groove) |
| Secondary Material Application ISO Code | K;P |
| Finish - Machining | Bright |
| Secondary Material Application | Cast Iron, Steel |
| Material - Machining | Carbide |
| Hole Type | Countersink Hole |
| Shape | Octagon |
| Clearance Angle | 15 deg |
| Chip-Breaker Code | G88 |
| Number of Cutting Edges | 8 |
| ANSI Code | ODHT0504ZZN-G88 WK10 |
| Insert Holding Type | Screw Held |
| Thickness | 0.187 in |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Magnesium |
| Package Quantity | 1 |
