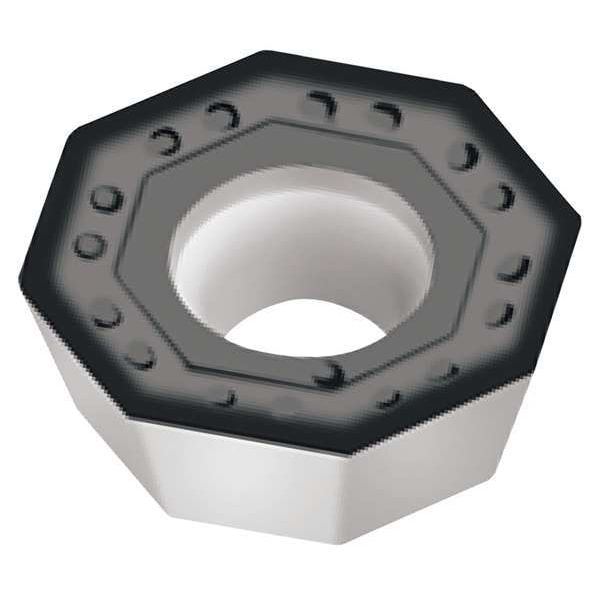

Octagon ODHW Carbide
| Item | Octagon Milling Insert |
|---|---|
| Insert Style | ODHW |
| Insert Shape | Octagon |
| Insert Size | 605 |
| Insert Material | Carbide |
| Corner Radius | 0.8 mm |
| For Use With | F2010 Face Milll |
| Stainless (M) Compatibility | No |
| Grade | WKP35S |
| Insert Application | Medium |
| Cutting Direction | Right Hand |
| Mounting Style | Screw Held |
| Steel (P) Compatibility | Yes |
| Coating | CVD |
| ANSI Number | ODHW0605ZZN-A57 WKP35S |
| Nose Radius | 0.031 in |
| Rake | Positive |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Chip-Breaker | Yes |
| No. of Edges | 8 |
| Inscribed Circle | 5/8 in |
| Insert Thickness | 0.219 in |
| Super Alloy (S) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Hardened (H) Compatibility | No |
| Cast Iron (K) Compatibility | Yes |
| ISO Number | ODHW0605ZZN-A57 WKP35S |
| Material - Machining | Carbide |
| ANSI Code | ODHW0605ZZN-A57 WKP35S |
| Clearance Angle | 15 deg |
| Insert Holding Type | Screw Held |
| Included Angle | 135 deg |
| Chip-Breaker Style | 0 deg (Chipbreaker Groove) |
| Cutting Edge Length | 6.58 mm |
| Manufacturer Grade | WKP35S |
| Primary Material Application ISO Code | P, K |
| Number of Cutting Edges | 8 |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Wiper Insert | Yes |
| Chip-Breaker Code | A57 |
| Primary Material Application | Cast Iron, Steel |
| Measurement System | Metric |
| Cutting Application | Medium |
| Coating Process | CVD |
| Hole Type | Countersink Hole |
| Shape | Octagon |
| Thickness | 0.219 in |
| Package Quantity | 1 |
