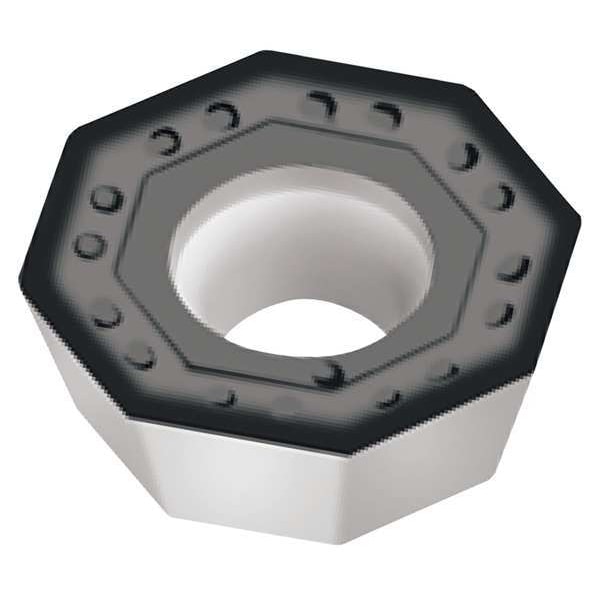

Octagon ODMW Carbide
| Item | Octagon Milling Insert |
|---|---|
| Insert Style | ODMW |
| Insert Shape | Octagon |
| Insert Size | 60,508 |
| Insert Material | Carbide |
| Corner Radius | 0.8 mm |
| Steel (P) Compatibility | Yes |
| Stainless (M) Compatibility | No |
| No. of Edges | 8 |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Rake | Positive |
| Nose Radius | 0.031 in |
| Super Alloy (S) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Insert Application | Roughing |
| Grade | WKP35S |
| Insert Thickness | 0.219 in |
| Hardened (H) Compatibility | No |
| Coating | CVD |
| Inscribed Circle | 5/8 in |
| Mounting Style | Screw Held |
| For Use With | F2010 Face Milll |
| Chip-Breaker | Yes |
| ANSI Number | ODMW060508T-A27 WKP35S |
| Cast Iron (K) Compatibility | Yes |
| Cutting Direction | Right Hand |
| ISO Number | ODMW060508T-A27 WKP35S |
| Manufacturer Grade | WKP35S |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Insert Holding Type | Screw Held |
| Material - Machining | Carbide |
| Chip-Breaker Style | 0 deg (Chipbreaker Groove) |
| Primary Material Application ISO Code | P, K |
| Number of Cutting Edges | 8 |
| Feed Type | High |
| Shape | Octagon |
| ANSI Code | ODMW060508T-A27 WKP35S |
| Measurement System | Metric |
| Hole Type | Countersink Hole |
| Coating Process | CVD |
| Clearance Angle | 15 deg |
| Cutting Edge Length | 6.58 mm |
| Primary Material Application | Cast Iron, Steel |
| Cutting Application | Roughing |
| Thickness | 0.219 in |
| Chip-Breaker Code | A27 |
| Included Angle | 135 deg |
| Package Quantity | 1 |
