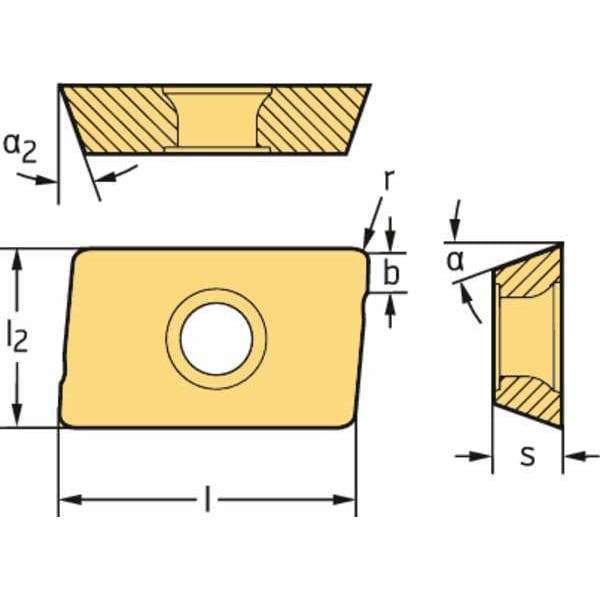

Parallelogram ADHT Carbide
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Style | ADHT |
| Insert Shape | Parallelogram |
| Insert Size | 1,204 |
| Insert Material | Carbide |
| Corner Radius | 0.8 mm |
| Hardened (H) Compatibility | No |
| Rake | Positive |
| Mounting Style | Screw Held |
| Chip-Breaker | Yes |
| Cutting Direction | Right Hand |
| For Use With | Xtra·Tec Milling Cutter |
| Coating | PVD |
| Workpiece Compatibility | Nonferrous (N) |
| Insert Thickness | 0.187 in |
| Stainless (M) Compatibility | No |
| No. of Edges | 2 |
| Insert Application | Roughing |
| Cast Iron (K) Compatibility | No |
| Inscribed Circle | 0.331 in |
| Nose Radius | 0.031 in |
| Grade | WXN15 |
| Non Ferrous (N) Compatibility | Yes |
| Super Alloy (S) Compatibility | No |
| Steel (P) Compatibility | No |
| ANSI Number | ADHT1204PER-G88 WXN15 |
| ISO Number | ADHT1204PER-G88 WXN15 |
| Hole Type | Countersink Hole |
| Material - Machining | Carbide |
| Included Angle | 85 deg |
| ANSI Code | ADHT1204PER-G88 WXN15 |
| Finish - Machining | TiCN+ |
| Width | 8.4 mm |
| Coating Process | PVD |
| Shape | Parallelogram |
| Manufacturer Grade | WXN15 |
| Cutting Edge Length | 13.6 mm |
| Insert Holding Type | Screw Held |
| Chip-Breaker Code | G88 |
| Measurement System | Metric |
| Cutting Application | Roughing |
| Thickness | 0.187 in |
| Primary Material Application ISO Code | N |
| Chip-Breaker Style | 20 deg (Chipbreaker Groove) |
| Number of Cutting Edges | 2 |
| Clearance Angle | 15 deg |
| Wiper Insert | Yes |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Magnesium |
| Package Quantity | 1 |
