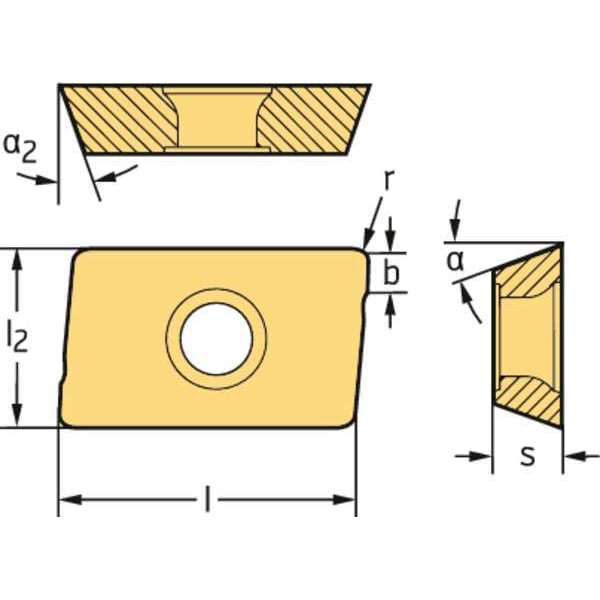

Parallelogram ADKT Carbide
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Style | ADKT |
| Insert Shape | Parallelogram |
| Insert Size | 10T3 |
| Insert Material | Carbide |
| Corner Radius | 0.8 mm |
| Non Ferrous (N) Compatibility | No |
| Cutting Direction | Right Hand |
| Hardened (H) Compatibility | No |
| Nose Radius | 0.031 in |
| Rake | Positive |
| Steel (P) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| ANSI Number | ADKT10T3PER-F56 WKP35S |
| Inscribed Circle | 0.285 in |
| Coating | CVD |
| Mounting Style | Screw Held |
| Super Alloy (S) Compatibility | No |
| No. of Edges | 2 |
| Stainless (M) Compatibility | No |
| Insert Application | Medium |
| Chip-Breaker | Yes |
| Grade | WKP35S |
| Insert Thickness | 0.15 in |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| For Use With | Xtra·Tec Milling Cutter |
| ISO Number | ADKT10T3PER-F56 WKP35S |
| Included Angle | 85 deg |
| ANSI Code | ADKT10T3PER-F56 WKP35S |
| Manufacturer Grade | WKP35S |
| Clearance Angle | 15 deg |
| Width | 7.25 mm |
| Chip-Breaker Style | 16 deg (Chipbreaker Groove) |
| Insert Holding Type | Screw Held |
| Hole Type | Countersink Hole |
| Cutting Edge Length | 11.3 mm |
| Thickness | 0.15 in |
| Wiper Insert | Yes |
| Number of Cutting Edges | 2 |
| Material - Machining | Carbide |
| Primary Material Application | Cast Iron, Steel |
| Measurement System | Metric |
| Chip-Breaker Code | F56 |
| Shape | Parallelogram |
| Coating Process | CVD |
| Primary Material Application ISO Code | P, K |
| Cutting Application | Medium |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Package Quantity | 1 |
