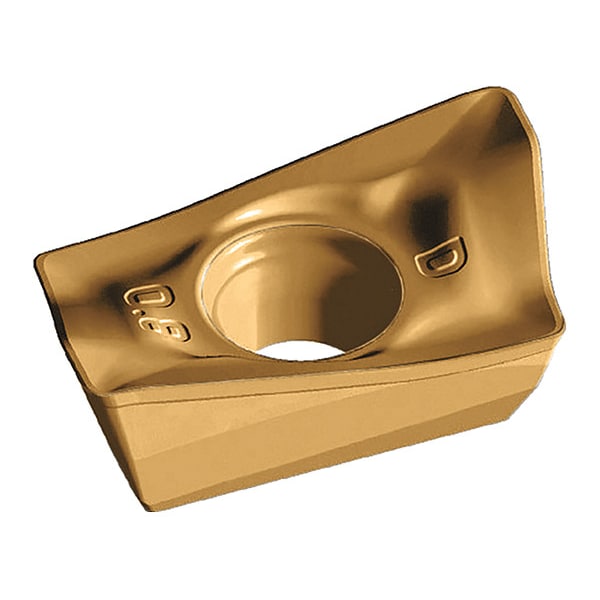

Parallelogram Milling Insert, Rhombic, 0.2660 in, ADMT, 3/64 in
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Shape | Rhombic |
| Insert Style | ADMT |
| Inscribed Circle | 0.266 in |
| Insert Size | 80,312 |
| Chip-Breaker | Yes |
| Corner Radius | 3/64 in |
| Rake | Positive |
| ISO Number | ADMT080312R-F56 |
| For Toolholder | Xtra-Tec Milling Cutters |
| Hole Type | With Hole |
| Included Angle | 85 Degrees |
| Finish - Machining | TiAlN+Al2O3+ |
| Chip-Breaker Code | F56 |
| Primary Material Application | High-Temperature Alloys, Stainless Steel |
| Manufacturer Grade | WSM35S |
| Coating Process | PVD |
| Clearance Angle | 15 deg |
| Primary Material Application ISO Code | M, S |
| Material - Machining | Carbide |
| Thickness | 0.132 in |
| ANSI Code | ADMT080312R-F56 |
| Cutting Edge Length | 9.52 mm |
| Shape | Rhombic |
| Package Quantity | 1 |
