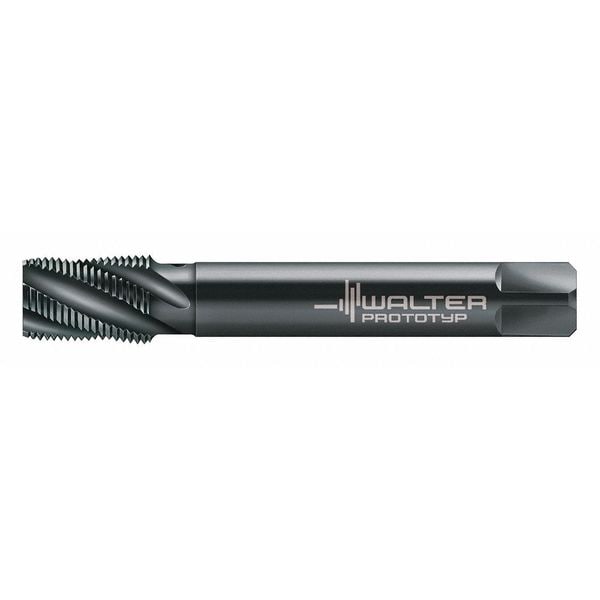

Pipe Tap, 1/8"-27, Plug, 4 Flutes, NPT
| Item | Pipe Tap |
|---|---|
| Tap Thread Size | 1/8"-27 |
| Tap Chamfer | Plug |
| Number of Flutes | 4 |
| Tap Thread Type | NPT |
| Thread Direction | Right Hand |
| Overall Length | 3-9/16 in |
| Pitch Diameter Limit | Not Rated |
| Standards | ANSI, DIN |
| Number of Pieces | 1 |
| Thread Length | 9/16 in |
| List Number | A25563 |
| Tap Dimension Type | Inch |
| Tap Finish | Steam Oxide |
| Tap Style | Pipe |
| Tap Material | High Speed Steel |
| Shank Dia. | 7/16 in |
| Tap Size | 1/8" |
| Cutting Direction - Machining | Right Hand |
| Series | Paradur Inox |
| Threads per Inch | 27 |
| Helix Angle | 30 deg |
| Primary Material Application ISO Code | P, M |
| Coolant Fed | Non-Coolant Through |
| Secondary Material Application ISO Code | K |
| Extended Neck | Yes |
| Drill Bit Size | 0.327 in, 0.331 in, 0.344 in |
| Thread Standard | NPT |
| Measurement System | Fractional Inch |
| Square Size | 8.33 mm |
| Tap Length Standard | DIN |
| Material Grade - Machining | VAP |
| Tap Shank Standard | ANSI |
| Secondary Material Application | Cast Iron |
| Shank Length | 26.52 mm |
| 75% Thread Drill Size | Q |
| Thread Size | 1/8"-27 |
| Primary Material Application | Stainless Steel, Steel |
| Package Quantity | 1 |
