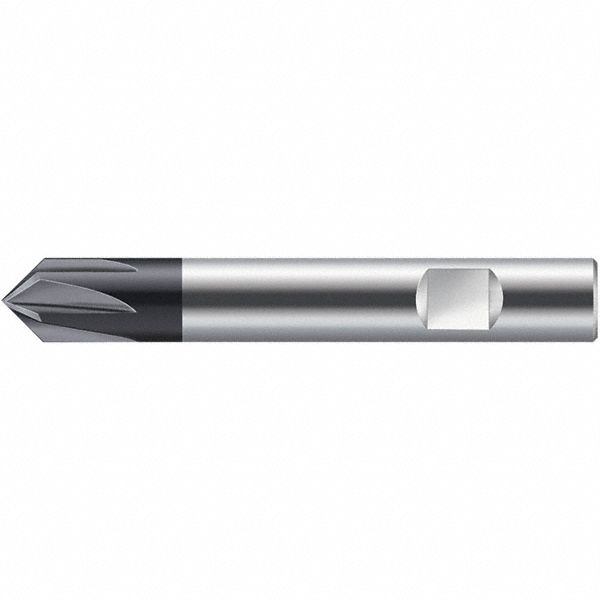

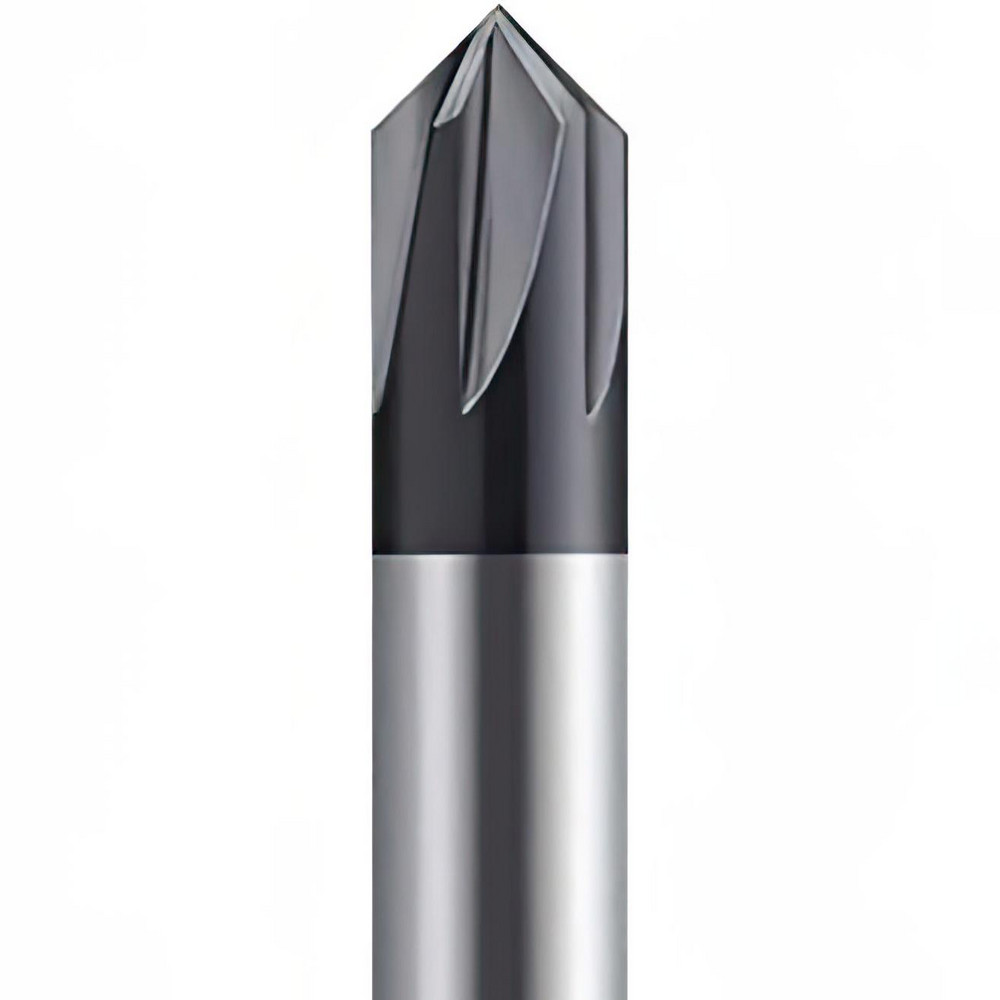

100 mm OAL, TiAlN
| Included Angle | 90 |
|---|---|
| Chamfer Mill Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Cutter Head Diameter (mm) | 1.50 |
| Cutter Head Diameter (Decimal Inch) | 0.0590 |
| Number Of Flutes | 4 |
| End Type | Single |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3940 |
| Length of Cut (mm) | 4.25 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1670 |
| Overall Length (mm) | 100 |
| Shank Length (mm) | 95.75 |
| Shank Length (Decimal Inch) | 3.7700 |
| Tool Application | Chamfering |
| Cutting Direction | Right Hand |
| Series | WJ30TF |
| UNSPSC Code | 23241600 |
| Country of Origin | Italy |
| MSC Number | MSC# 47278783 |
