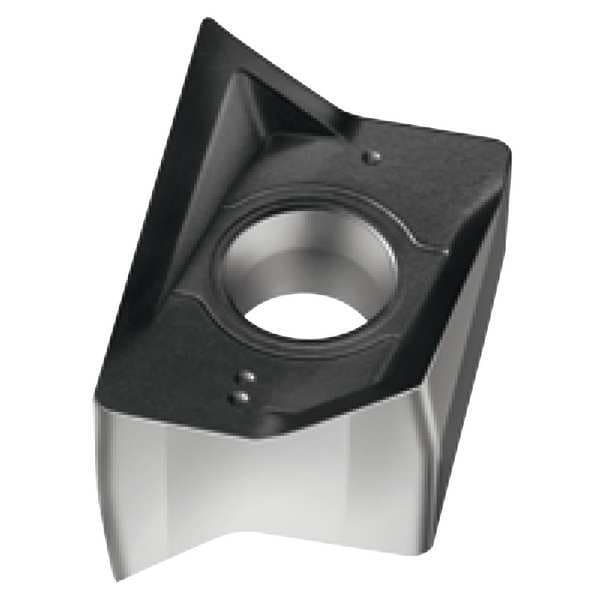

Rectangle LNGX Carbide
| Item | Diamond Milling Insert |
|---|---|
| Insert Style | LNGX |
| Insert Shape | Rectangle |
| Insert Size | 130,720 |
| Insert Material | Carbide |
| Corner Radius | 5/64 in |
| Super Alloy (S) Compatibility | No |
| Chip-Breaker | Yes |
| Coating | CVD |
| Cutting Direction | Right Hand |
| No. of Edges | 4 |
| Grade | WKP35S |
| Cast Iron (K) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Nose Radius | 0.079 in |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| For Use With | Xtra·Tec Milling Cutter |
| Stainless (M) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Rake | Negative |
| Mounting Style | Screw Held |
| ANSI Number | LNGX130720R-L55 WKP35S |
| Steel (P) Compatibility | Yes |
| Inscribed Circle | 0.433 in |
| Insert Thickness | 0.312 in |
| Insert Application | Medium |
| Measurement System | Metric |
| Chip-Breaker Code | L55 |
| Width | 11 mm |
| ISO Number | LNGX130720R-L55 WKP35S |
| Thickness | 0.312 in |
| Manufacturer Grade | WKP35S |
| Cutting Application | Medium |
| Primary Material Application | Cast Iron, Steel |
| Material - Machining | Carbide |
| Clearance Angle | 0 deg |
| Chip-Breaker Style | 28 deg (Chipbreaker Groove) |
| Number of Cutting Edges | 4 |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Shape | Rectangular |
| Coating Process | CVD |
| Insert Holding Type | Screw Held |
| Wiper Insert | Yes |
| Cutting Edge Length | 13.7 mm |
| ANSI Code | LNGX130720R-L55 WKP35S |
| Primary Material Application ISO Code | P, K |
| Package Quantity | 1 |
