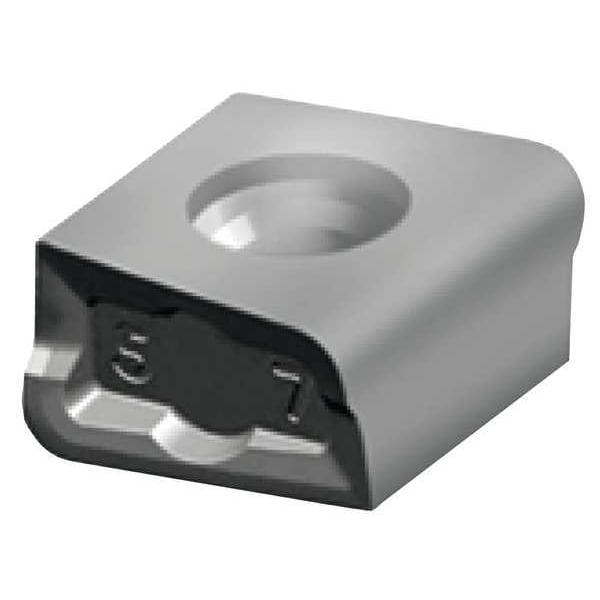

Rectangle LNHU Carbide
| Item | Diamond Milling Insert |
|---|---|
| Insert Style | LNHU |
| Insert Shape | Rectangle |
| Insert Size | 120,608 |
| Insert Material | Carbide |
| Corner Radius | 1/32 in |
| Inscribed Circle | 0.472 in |
| Insert Thickness | 0.256 in |
| Non Ferrous (N) Compatibility | No |
| No. of Edges | 4 |
| Grade | WKP25S |
| Insert Application | Medium |
| Mounting Style | Screw Held |
| Super Alloy (S) Compatibility | No |
| Cutting Direction | Right Hand |
| Chip-Breaker | Yes |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| ANSI Number | LNHU120608-F57T WKP25S |
| For Use With | Xtra·Tec Slotting Cutter |
| Rake | Negative |
| Hardened (H) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Stainless (M) Compatibility | No |
| Coating | CVD |
| Nose Radius | 0.031 in |
| Insert Holding Type | Screw Held |
| Chip-Breaker Style | 16 deg (Chipbreaker Groove) |
| Primary Material Application | Cast Iron, Steel |
| Width | 13.9 mm |
| Chip-Breaker Code | F57T |
| Primary Material Application ISO Code | P, K |
| Shape | Rectangular |
| Measurement System | Metric |
| Thickness | 0.256 in |
| Cutting Application | Medium |
| Coating Process | CVD |
| ISO Number | LNHU120608-F57T WKP25S |
| ANSI Code | LNHU120608-F57T WKP25S |
| Number of Cutting Edges | 4 |
| Cutting Edge Length | 12 mm |
| Clearance Angle | 0 deg |
| Material - Machining | Carbide |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Hole Type | Double Countersink Hole |
| Manufacturer Grade | WKP25S |
| Package Quantity | 1 |
