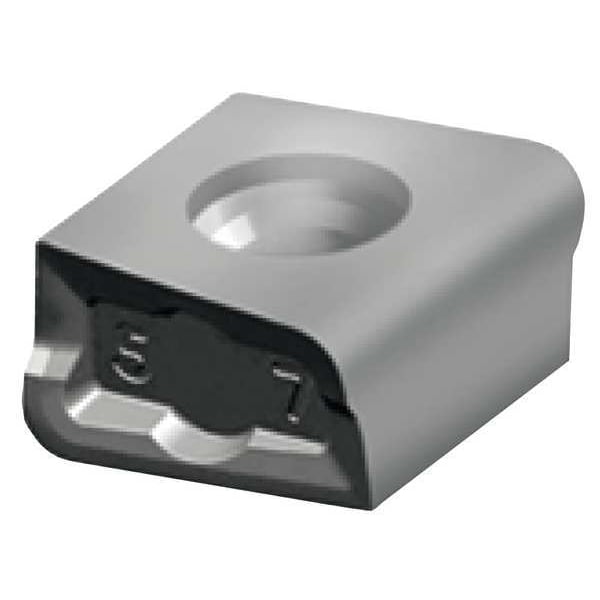

Rectangle LNHU Carbide
| Item | Diamond Milling Insert |
|---|---|
| Insert Style | LNHU |
| Insert Shape | Rectangle |
| Insert Size | 130,612 |
| Insert Material | Carbide |
| Corner Radius | 3/64 in |
| Mounting Style | Screw Held |
| Super Alloy (S) Compatibility | No |
| Insert Application | Medium |
| Stainless (M) Compatibility | No |
| Grade | WKP35S |
| Inscribed Circle | 0.512 in |
| Cast Iron (K) Compatibility | Yes |
| Nose Radius | 0.047 in |
| Chip-Breaker | Yes |
| Insert Thickness | 0.267 in |
| No. of Edges | 4 |
| Non Ferrous (N) Compatibility | No |
| ANSI Number | LNHU130612R-L55T WKP35S |
| Hardened (H) Compatibility | No |
| Cutting Direction | Right Hand |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| For Use With | Walter Blaxx Shoulder Milling Cutter |
| Steel (P) Compatibility | Yes |
| Coating | CVD |
| Rake | Negative |
| ISO Number | LNHU130612R-L55T WKP35S |
| Manufacturer Grade | WKP35S |
| Width | 12 mm |
| For Toolholder | F2010.B.080.Z06.12.R752M, F2010.B.100.Z07.12.R752M, F2010.B.125.Z08.12.R752M, F2010.B.160.Z10.12.R752M, F2010.B.200.Z12.12.R752M, F2010.B.250.Z12.12.R752M, F2010.B.250.Z16.12.R752M, F2010.B.315.Z14.12.R752M, F2010.B.315.Z18.12.R752M |
| Number of Cutting Edges | 4 |
| Measurement System | Metric |
| Clearance Angle | 0 deg |
| Primary Material Application | Cast Iron, Steel |
| Hole Type | Double Countersink Hole |
| Insert Holding Type | Screw Held |
| Material - Machining | Carbide |
| Cutting Application | Medium |
| ANSI Code | LNHU130612R-L55T WKP35S |
| Chip-Breaker Style | 28 deg (Chipbreaker Groove) |
| Thickness | 0.267 in |
| Shape | Rectangular |
| Chip-Breaker Code | L55T |
| Cutting Edge Length | 13 mm |
| Coating Process | CVD |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Primary Material Application ISO Code | P, K |
| Wiper Insert | Yes |
| Package Quantity | 1 |
