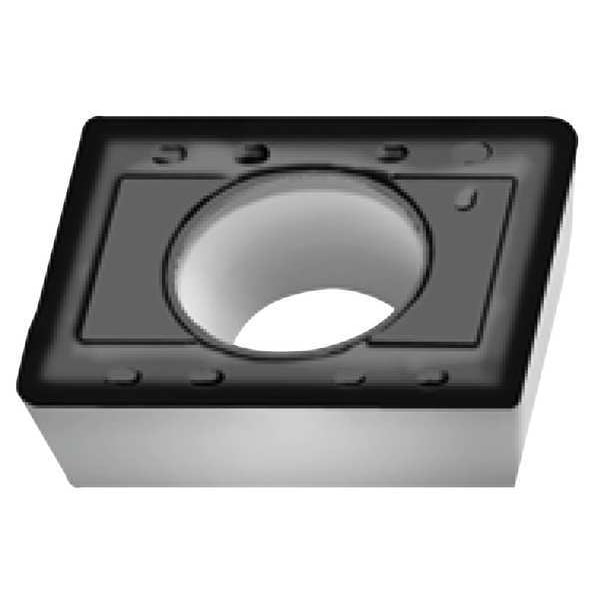

Rectangle LPGT Carbide
| Item | Diamond Milling Insert |
|---|---|
| Insert Style | LPGT |
| Insert Shape | Rectangle |
| Insert Size | 150,412 |
| Insert Material | Carbide |
| Corner Radius | 3/64 in |
| Stainless (M) Compatibility | No |
| Inscribed Circle | 1/2 in |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Chip-Breaker | Yes |
| Mounting Style | Screw Held |
| Steel (P) Compatibility | Yes |
| Nose Radius | 0.047 in |
| Coating | CVD |
| Cast Iron (K) Compatibility | Yes |
| Super Alloy (S) Compatibility | No |
| Rake | Positive |
| Insert Application | Medium |
| No. of Edges | 2 |
| Non Ferrous (N) Compatibility | No |
| Hardened (H) Compatibility | No |
| Cutting Direction | Right Hand |
| For Use With | F2237 Routing Cutter |
| Grade | WKP35S |
| ANSI Number | LPGT150412R-F55 WKP35S |
| Insert Thickness | 0.156 in |
| Primary Material Application ISO Code | P, K |
| Cutting Edge Length | 15.88 mm |
| Clearance Angle | 11 deg |
| Hole Type | Countersink Hole |
| Coating Process | CVD |
| Primary Material Application | Cast Iron, Steel |
| Wiper Insert | Yes |
| Material - Machining | Carbide |
| ANSI Code | LPGT150412R-F55 WKP35S |
| Chip-Breaker Code | F55 |
| Chip-Breaker Style | 16 deg (Chipbreaker Groove) |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Width | 12.7 mm |
| Manufacturer Grade | WKP35S |
| Number of Cutting Edges | 2 |
| Cutting Application | Medium |
| Shape | Rectangular |
| Measurement System | Metric |
| Insert Holding Type | Screw Held |
| ISO Number | LPGT150412R-F55 WKP35S |
| Thickness | 0.156 in |
| Package Quantity | 1 |
