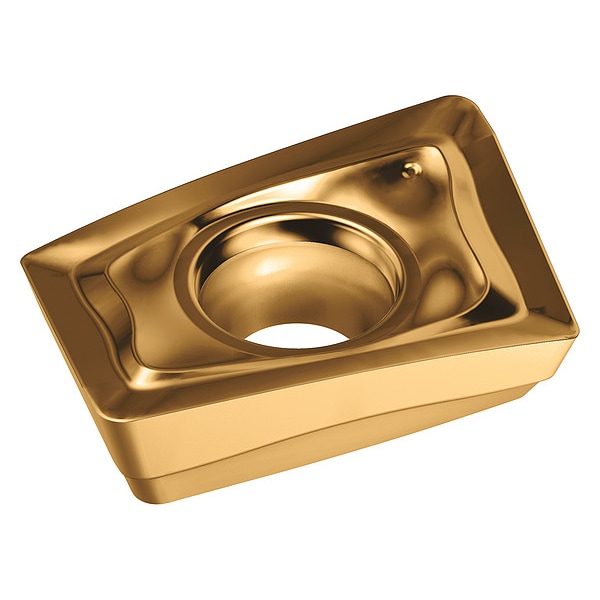

Rectangle Milling Insert, 0.3810 in, LDMT, 1/32 in
| Item | Rectangle Milling Insert |
|---|---|
| Insert Style | LDMT |
| Inscribed Circle | 0.381 in |
| Insert Size | 14T308 |
| Chip-Breaker | Yes |
| Corner Radius | 1/32 in |
| Rake | Positive |
| ISO Number | LDMT14T308R-D57 |
| Width | 0.381 in |
| Primary Material Application ISO Code | P, K |
| Hole Type | With Hole |
| Manufacturer Grade | WKP25S |
| Coating Process | CVD |
| Chip-Breaker Code | D57 |
| Finish - Machining | TiCN+Al2O3+ |
| Material - Machining | Carbide |
| ANSI Code | LDMT14T308R-D57 |
| Number of Cutting Edges | 2 |
| Thickness | 0.161 in |
| Shape | Rectangular |
| Clearance Angle | 15 deg |
| Primary Material Application | Cast Iron, Steel |
| Cutting Edge Length | 14.1 mm |
| Package Quantity | 1 |
