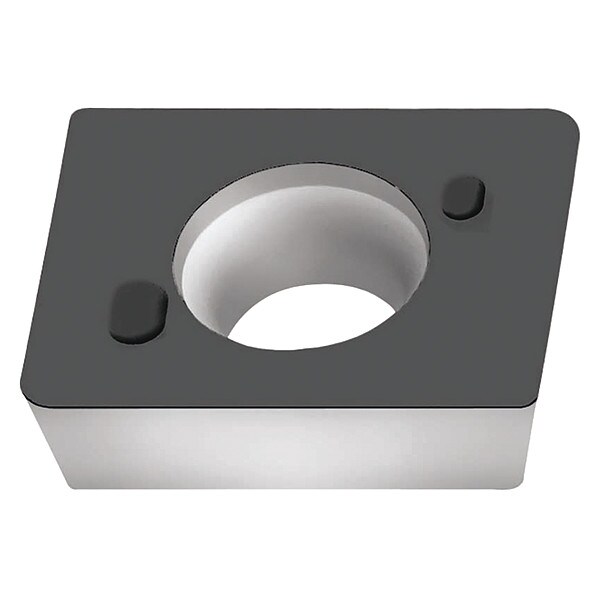

Rectangle Milling Insert, 1/2 in, LPMW, 3/64 in
| Item | Rectangle Milling Insert |
|---|---|
| Insert Style | LPMW |
| Inscribed Circle | 1/2 in |
| Insert Size | 150,412 |
| Chip-Breaker | Yes |
| Corner Radius | 3/64 in |
| Rake | Positive |
| ISO Number | LPMW150412TR-A27 |
| Width | 1/2 in |
| Hole Type | With Hole |
| Finish - Machining | TiCN+Al2O3+ |
| Primary Material Application | Cast Iron, Steel |
| Manufacturer Grade | WKP35S |
| Material - Machining | Carbide |
| Shape | Rectangular |
| Clearance Angle | 11 deg |
| Number of Cutting Edges | 2 |
| Chip-Breaker Code | A27 |
| Measurement System | Fractional Inch |
| ANSI Code | LPMW150412TR-A27 |
| Thickness | 3/16 in |
| Coating Process | CVD |
| Cutting Edge Length | 15.88 mm |
| Primary Material Application ISO Code | P, K |
| Package Quantity | 1 |
