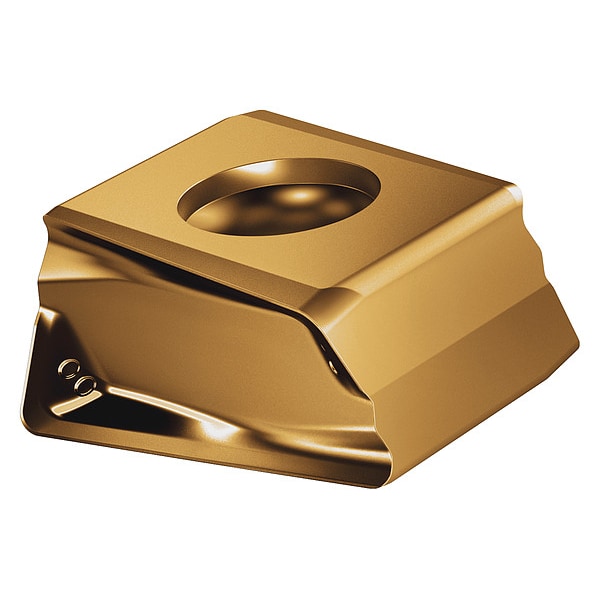

Rectangle Milling Insert, LNHU, 0.1260"
| Item | Rectangle Milling Insert |
|---|---|
| Insert Style | LNHU |
| Insert Size | 130,632 |
| Chip-Breaker | Yes |
| Corner Radius | 0.126 in |
| Rake | Negative |
| ISO Number | LNHU130632R-L55T |
| Width | 0.472 in |
| Hole Type | With Hole |
| Manufacturer Grade | WKP35S |
| For Toolholder | Walter BLAXX |
| Clearance Angle | 0 deg |
| Primary Material Application | Cast Iron, Steel |
| Shape | Rhombic, Rectangular |
| Finish - Machining | TiCN+Al2O3+ |
| Thickness | 0.268 in |
| Chip-Breaker Code | L55T |
| ANSI Code | LNHU130632R-L55T |
| Cutting Edge Length | 13 mm |
| Number of Cutting Edges | 4 |
| Material - Machining | Carbide |
| Coating Process | CVD |
| Primary Material Application ISO Code | P, K |
| Package Quantity | 1 |
