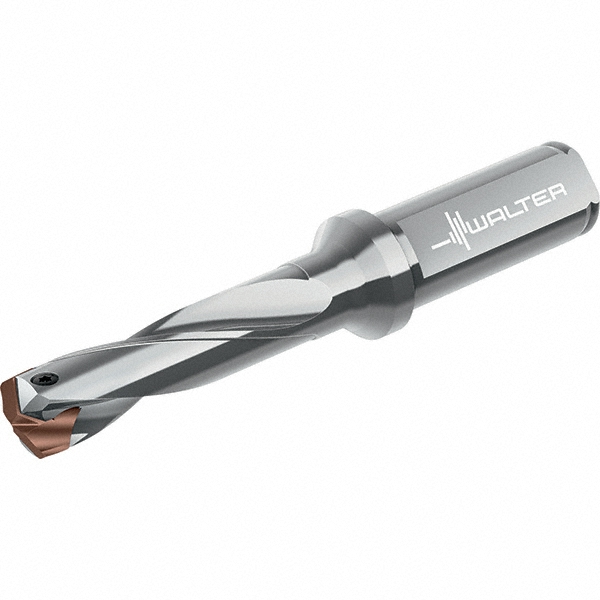

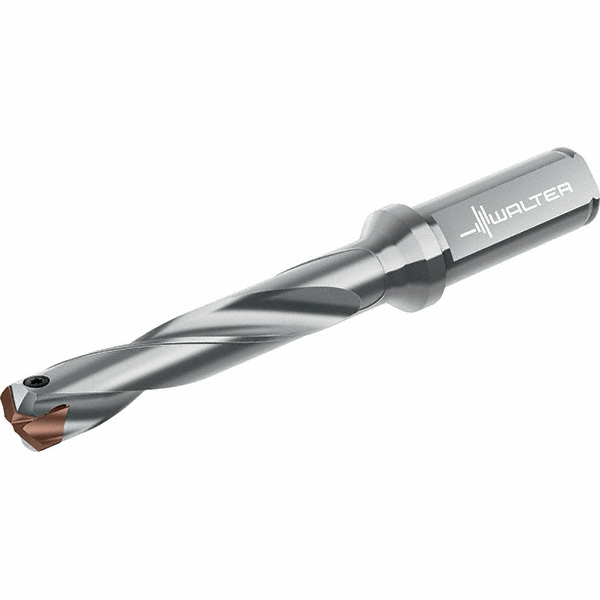

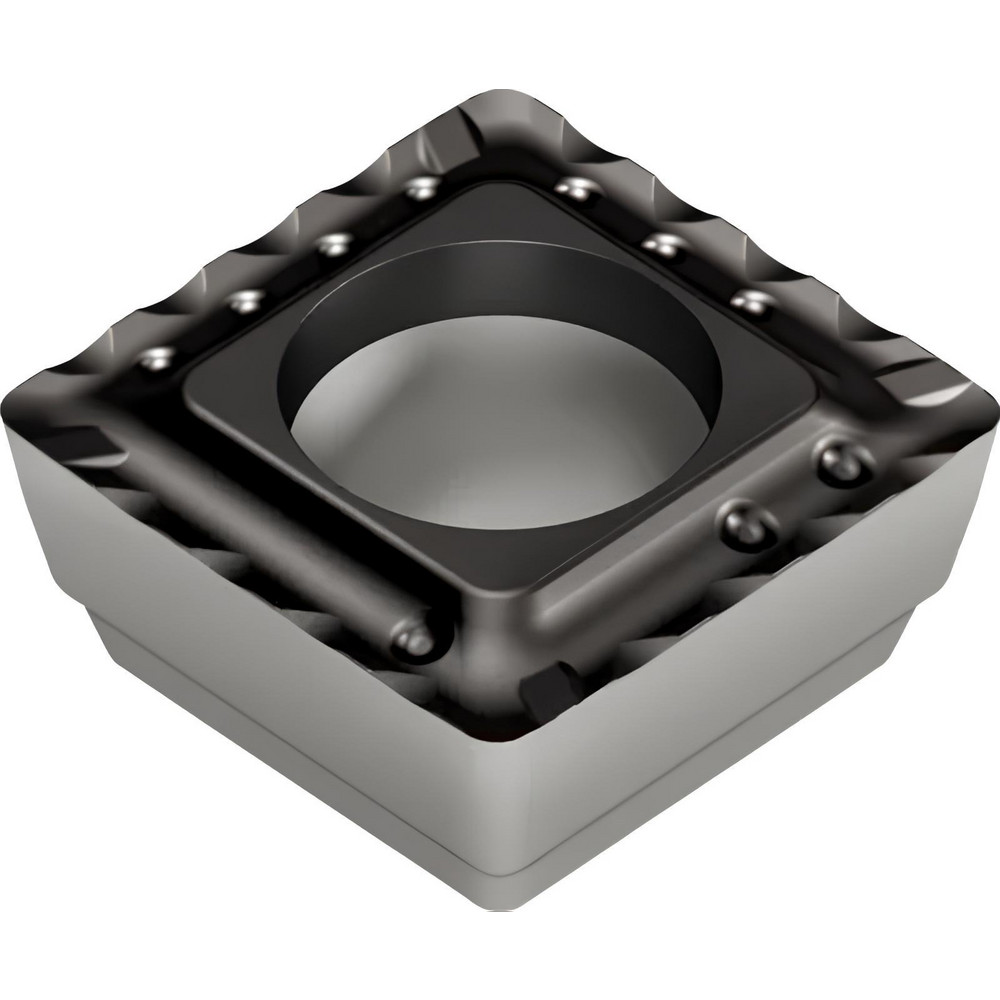

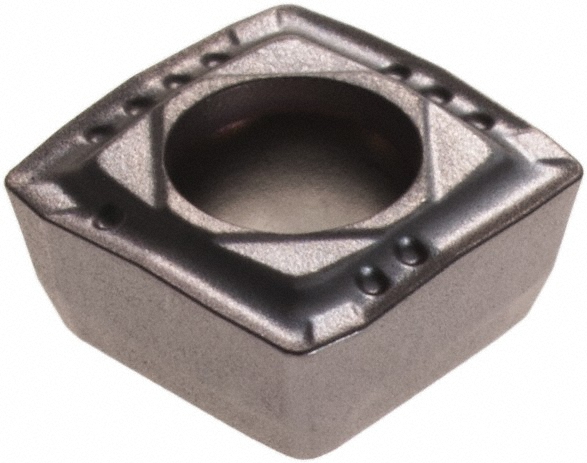

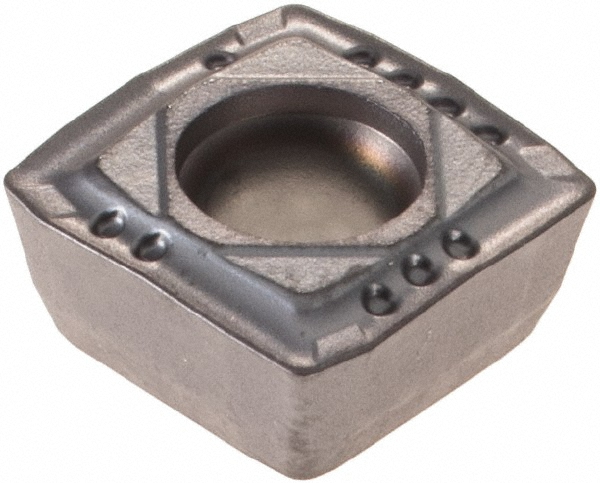

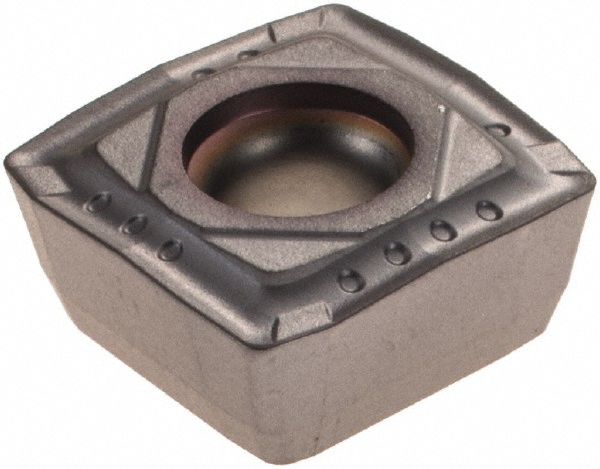

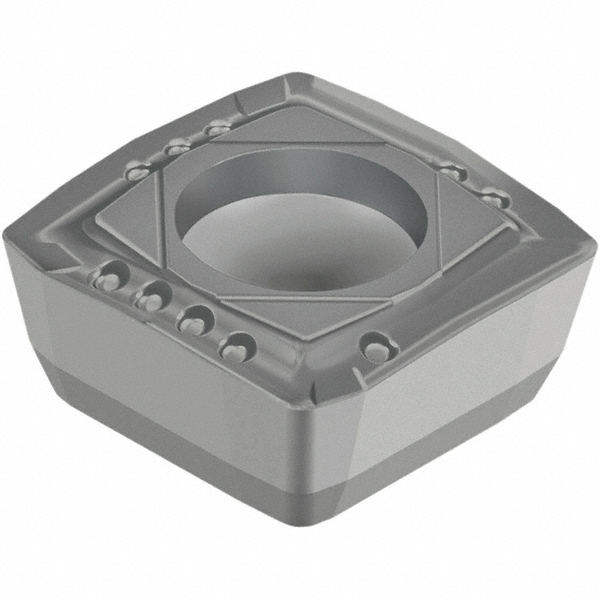

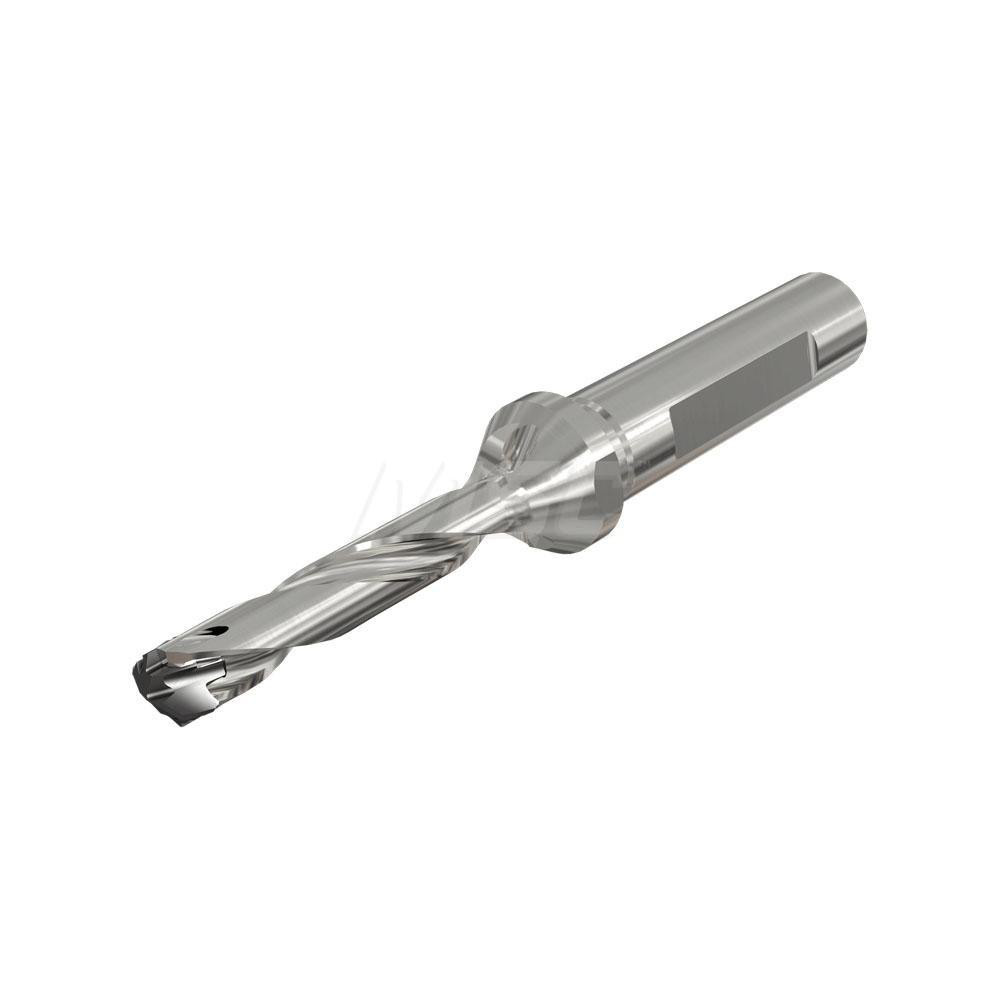

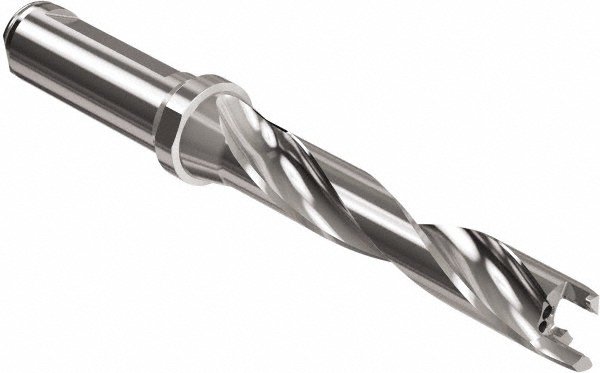

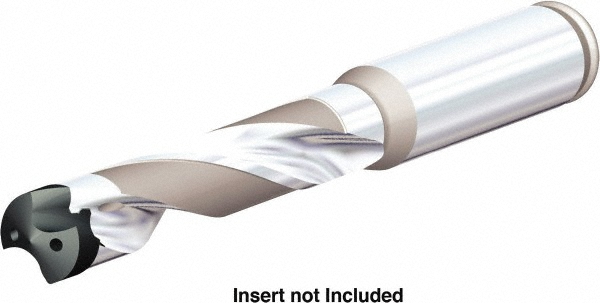

Uses P6001/P6003/P6004/P6005 Inserts, 152 mm OAL, Through Coolant
| Minimum Drill Diameter (mm) | 14.00 |
|---|---|
| Maximum Drill Diameter (mm) | 14.99 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 73.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 60.00 to 80.00 |
| Compatible Insert Style | P6001; P6003; P6004; P6005 |
| Overall Length (mm) | 152 |
| Series | D4140 |
| Toolholder Style | D4140 |
| Flute Length (mm) | 84.00 |
| Body Length (mm) | 104.00 |
| Shank Length (Decimal Inch) | 1.8900 |
| Shank Length (mm) | 48.00 |
| Tool Application | Solid Drilling |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Austria |
| undefined | undefined |
| MSC Number | MSC# 11735537 |
