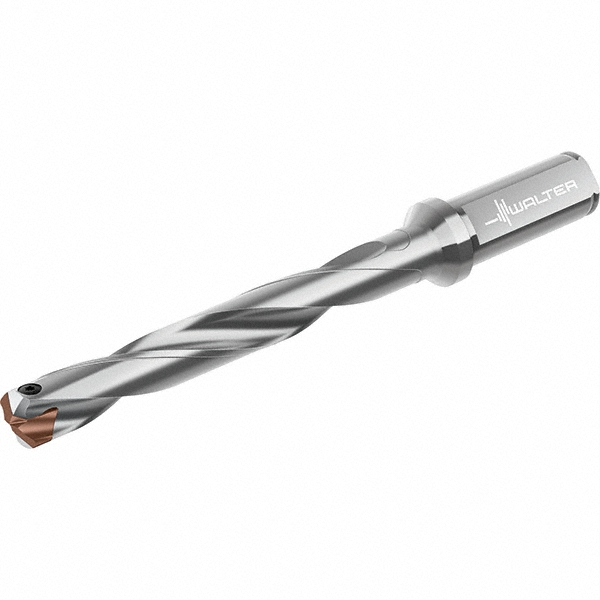

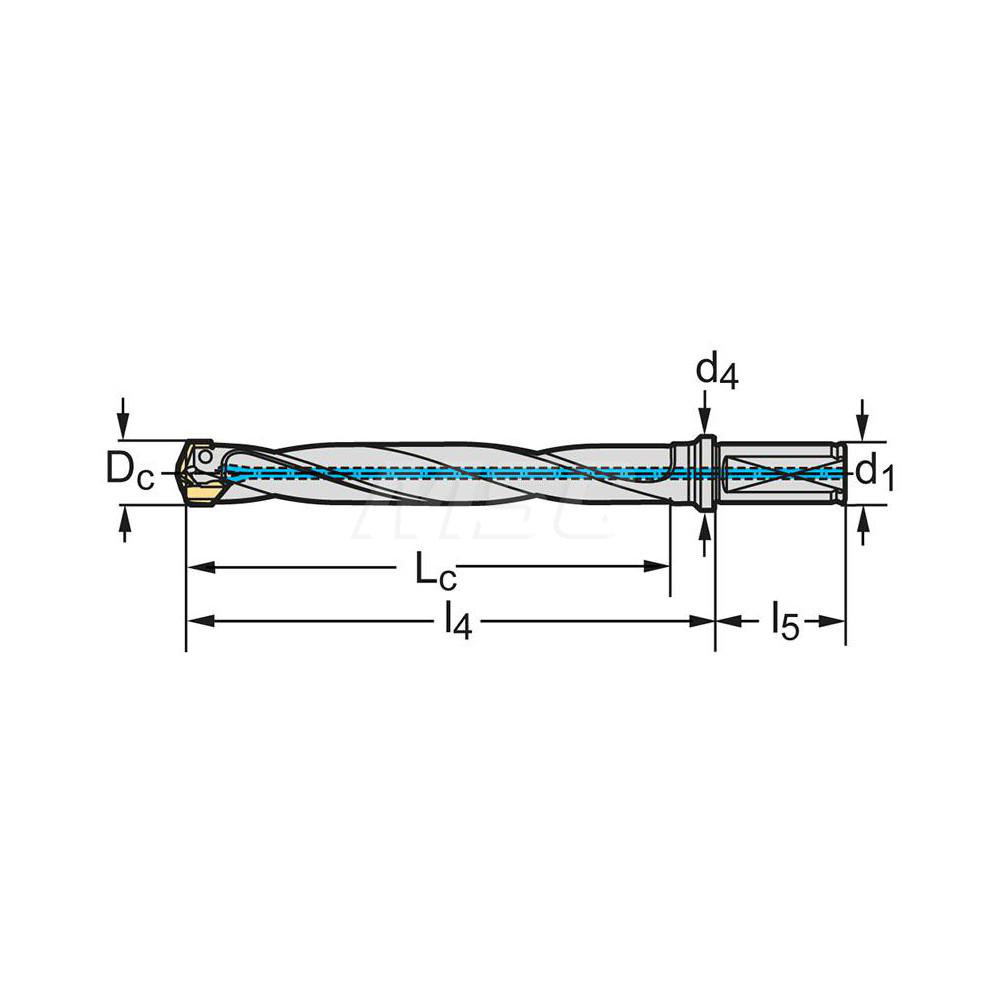

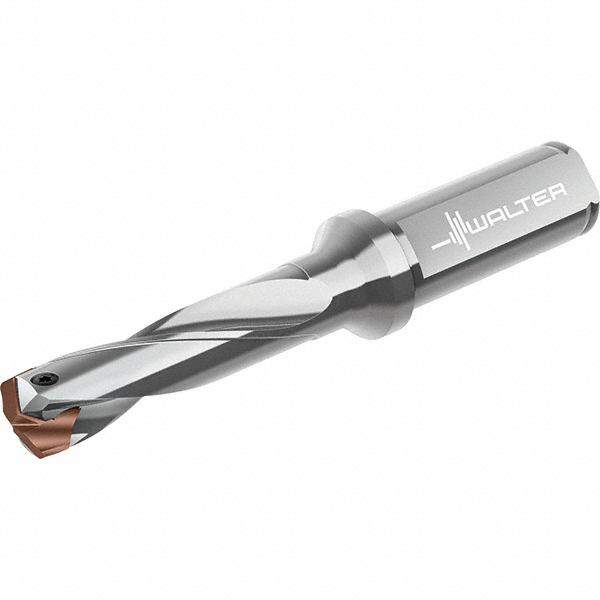

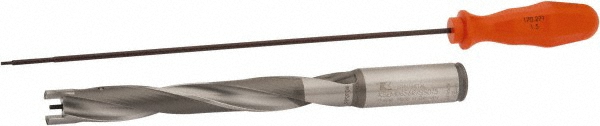

Uses P6001-D30 R/P6003-D30 R/P6004-D30 R/P6005-D30 R Inserts, 322 mm OAL, Through Coolant
| Minimum Drill Diameter (mm) | 30.00 |
|---|---|
| Maximum Drill Diameter (mm) | 30.99 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 257.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Maximum Drill Depth Range (mm) | 200.00 |
| Compatible Insert Style | P6003-D30 R; P6004-D30 R; P6001-D30 R; P6005-D30 R |
| Overall Length (mm) | 322 |
| Series | D4140 |
| Toolholder Style | D4140 |
| Flute Length (mm) | 215.00 |
| Flute Length (Decimal Inch) | 8.4650 |
| Body Length (mm) | 256.54 |
| Shank Length (Decimal Inch) | 2.3620 |
| Shank Length (mm) | 60.00 |
| Tool Application | Solid Drilling |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Austria |
| MSC Number | MSC# 31003643 |
