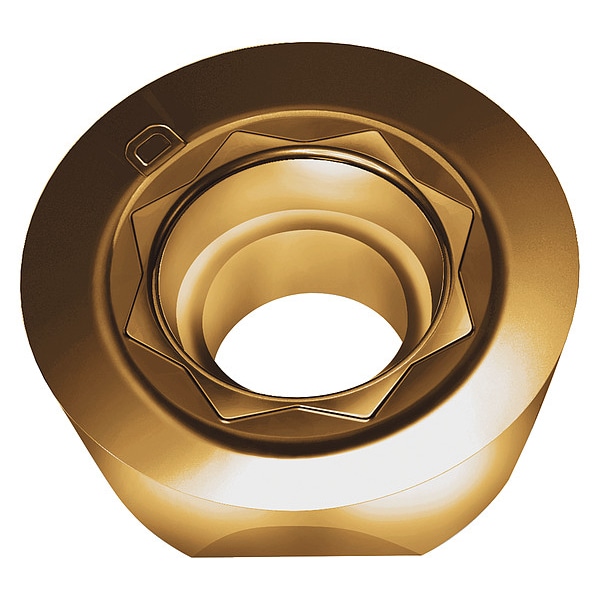

Round Milling Insert, Round, 0.3940 in, ROHX, 0.1970 in
| Item | Round Milling Insert |
|---|---|
| Insert Shape | Round |
| Insert Style | ROHX |
| Inscribed Circle | 0.394 in |
| Insert Size | 10T3 |
| Chip-Breaker | Yes |
| Corner Radius | 0.197 in |
| Rake | Positive |
| ISO Number | ROHX10T3M0-D67 |
| For Toolholder | F2334 |
| Number of Cutting Edges | 4 |
| Chip-Breaker Code | D67 |
| Manufacturer Grade | WSM35S |
| Coating Process | PVD |
| Thickness | 5/32 in |
| Material - Machining | Carbide |
| Primary Material Application ISO Code | M, S |
| Finish - Machining | TiAlN+Al2O3+ |
| Shape | Round |
| ANSI Code | ROHX10T3M0-D67 |
| Primary Material Application | High-Temperature Alloys, Stainless Steel |
| Hole Type | With Hole |
| Clearance Angle | 11 deg |
| Package Quantity | 1 |
