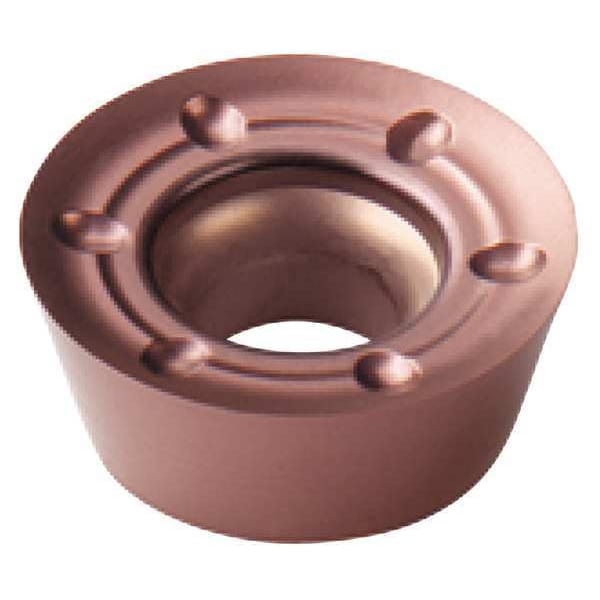

Round RDGT Carbide
| Item | Round Milling Insert |
|---|---|
| Insert Style | RDGT |
| Insert Shape | Round |
| Insert Size | 1605M0 |
| Insert Material | Carbide |
| Corner Radius | 8 mm |
| ANSI Number | RDGT1605M0-G88 WXN15 |
| Cutting Direction | Right Hand |
| Rake | Positive |
| Insert Application | Roughing |
| Workpiece Compatibility | Nonferrous (N) |
| Steel (P) Compatibility | No |
| Insert Thickness | 0.219 in |
| Stainless (M) Compatibility | No |
| Coating | PVD |
| Mounting Style | Screw Held |
| No. of Edges | 4 |
| Super Alloy (S) Compatibility | No |
| For Use With | Walter Tool |
| Non Ferrous (N) Compatibility | Yes |
| Cast Iron (K) Compatibility | No |
| Chip-Breaker | Yes |
| Nose Radius | 0.315 in |
| Hardened (H) Compatibility | No |
| Inscribed Circle | 5/8 in |
| Grade | WXN15 |
| Mounting Hole Dia. | 5.5 mm |
| ISO Number | RDGT1605M0-G88 WXN15 |
| Chip-Breaker Code | G88 |
| Cutting Edge Length | 16 mm |
| Finish - Machining | TiCN+ |
| Manufacturer Grade | WXN15 |
| Thickness | 0.219 in |
| Cutting Application | Milling |
| ANSI Code | RDGT1605M0-G88 WXN15 |
| Clearance Angle | 15 deg |
| Shape | Round |
| Material - Machining | Carbide |
| Through Hole Inside Dia. | 5.5 mm |
| Chip-Breaker Style | 20 deg (Chipbreaker Groove) |
| Measurement System | Metric |
| Primary Material Application ISO Code | N |
| Hole Type | Countersink Hole |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Magnesium |
| Insert Holding Type | Screw Held |
| Number of Cutting Edges | 6 |
| Coating Process | PVD |
| Package Quantity | 1 |
