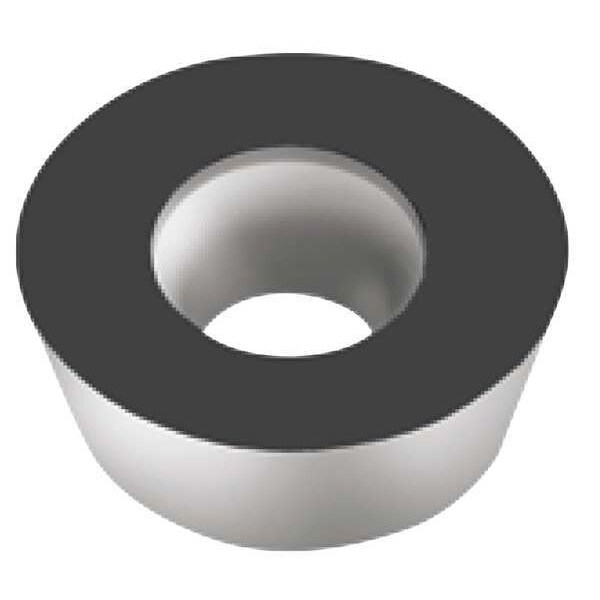

Round RDHX Carbide
| Item | Round Milling Insert |
|---|---|
| Insert Style | RDHX |
| Insert Shape | Round |
| Insert Size | 1604M0 |
| Insert Material | Carbide |
| Corner Radius | 8 mm |
| No. of Edges | 4 |
| Non Ferrous (N) Compatibility | No |
| Chip-Breaker | Yes |
| Hardened (H) Compatibility | No |
| Insert Thickness | 0.187 in |
| Grade | WKP25S |
| Coating | CVD |
| Stainless (M) Compatibility | No |
| Cutting Direction | Right Hand |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Insert Application | Roughing |
| Super Alloy (S) Compatibility | No |
| Rake | Positive |
| Steel (P) Compatibility | Yes |
| ANSI Number | RDHX1604M0T-A27 WKP25S |
| Mounting Style | Screw Held |
| Nose Radius | 0.315 in |
| Cast Iron (K) Compatibility | Yes |
| For Use With | Walter Tool |
| Inscribed Circle | 5/8 in |
| Mounting Hole Dia. | 5.5 mm |
| ISO Number | RDHX1604M0T-A27 WKP25S |
| Clearance Angle | 15 deg |
| Chip-Breaker Style | 0 deg (Chipbreaker Groove) |
| Number of Cutting Edges | 4 |
| Insert Holding Type | Screw Held |
| Shape | Round |
| Feed Type | High |
| Measurement System | Metric |
| Thickness | 0.187 in |
| Cutting Edge Length | 16 mm |
| Coating Process | CVD |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Cutting Edge | Chamfered |
| Material - Machining | Carbide |
| Chip-Breaker Code | A27 |
| Manufacturer Grade | WKP25S |
| ANSI Code | RDHX1604M0T-A27 WKP25S |
| Cutting Application | Milling |
| Primary Material Application | Cast Iron, Steel |
| Through Hole Inside Dia. | 5.5 mm |
| Primary Material Application ISO Code | P, K |
| Package Quantity | 1 |
