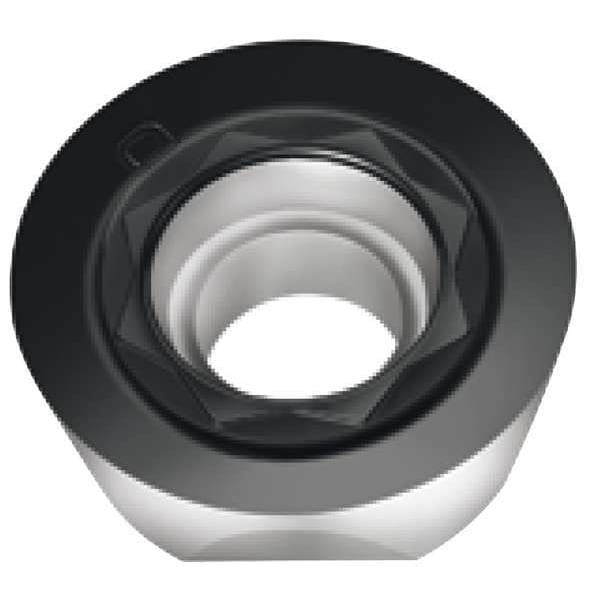

Round ROHX Carbide
| Item | Round Milling Insert |
|---|---|
| Insert Style | ROHX |
| Insert Shape | Round |
| Insert Size | 10T3M0 |
| Insert Material | Carbide |
| Corner Radius | 5 mm |
| Chip-Breaker | Yes |
| No. of Edges | 4 |
| Non Ferrous (N) Compatibility | No |
| Hardened (H) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Stainless (M) Compatibility | No |
| Inscribed Circle | 0.394 in |
| Mounting Style | Screw Held |
| Cutting Direction | Right Hand |
| Insert Thickness | 0.156 in |
| Workpiece Compatibility | Super Alloy (S) |
| Insert Application | Medium |
| Super Alloy (S) Compatibility | Yes |
| Coating | PVD |
| Steel (P) Compatibility | No |
| Grade | W3536 |
| ANSI Number | ROHX10T3M0-F67 W3536 |
| For Use With | F2334 Milling Insert |
| Nose Radius | 0.197 in |
| Rake | Positive |
| ISO Number | ROHX10T3M0-F67 W3536 |
| Material - Machining | Carbide |
| Thickness | 0.156 in |
| Number of Cutting Edges | 4 |
| Insert Holding Type | Screw Held |
| Coating Process | PVD |
| Chip-Breaker Style | 16 deg (Chipbreaker Groove) |
| Primary Material Application | Titanium, Nickel, Stainless Steel, Steel |
| Feed Type | Medium |
| Cutting Application | Milling |
| Measurement System | Metric |
| Manufacturer Grade | W3536 |
| Cutting Edge Length | 10 mm |
| Chip-Breaker Code | F67 |
| Finish - Machining | TiAlN+Al2O3+ZrN |
| Shape | Round |
| ANSI Code | ROHX10T3M0-F67 W3536 |
| Clearance Angle | 11 deg |
| Primary Material Application ISO Code | P, S, M |
| Package Quantity | 1 |
