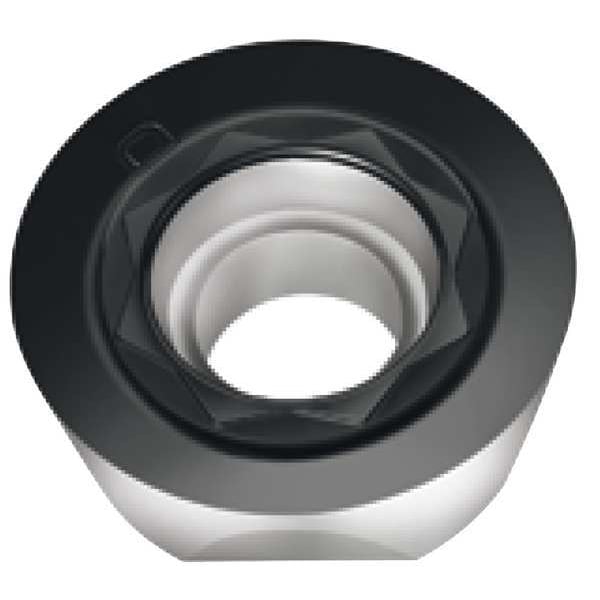

Round ROHX Carbide
| Item | Round Milling Insert |
|---|---|
| Insert Style | ROHX |
| Insert Shape | Round |
| Insert Size | 1204M0 |
| Insert Material | Carbide |
| Corner Radius | 6 mm |
| Cutting Direction | Right Hand |
| Nose Radius | 0.236 in |
| Insert Application | Medium |
| Mounting Style | Screw Held |
| No. of Edges | 4 |
| Steel (P) Compatibility | No |
| Stainless (M) Compatibility | No |
| Insert Thickness | 0.187 in |
| Inscribed Circle | 0.472 in |
| ANSI Number | ROHX1204M0-D67 W3536 |
| Hardened (H) Compatibility | No |
| Workpiece Compatibility | Super Alloy (S) |
| Super Alloy (S) Compatibility | Yes |
| Chip-Breaker | Yes |
| For Use With | F2334 Milling Insert |
| Non Ferrous (N) Compatibility | No |
| Grade | W3536 |
| Cast Iron (K) Compatibility | No |
| Rake | Positive |
| Coating | PVD |
| ISO Number | ROHX1204M0-D67 W3536 |
| Mounting Hole Dia. | 4.4 mm |
| Material - Machining | Carbide |
| Finish - Machining | TiAlN+Al2O3+ZrN |
| ANSI Code | ROHX1204M0-D67 W3536 |
| Primary Material Application | Titanium, Nickel, Stainless Steel, Steel |
| Through Hole Inside Dia. | 4.4 mm |
| Coating Process | PVD |
| Chip-Breaker Style | 10 deg (Chipbreaker Groove) |
| Number of Cutting Edges | 4 |
| Measurement System | Metric |
| Primary Material Application ISO Code | P, S, M |
| Insert Holding Type | Screw Held |
| Shape | Round |
| Clearance Angle | 11 deg |
| Cutting Edge Length | 12 mm |
| Thickness | 0.187 in |
| Cutting Application | Milling |
| Manufacturer Grade | W3536 |
| Chip-Breaker Code | D67 |
| Package Quantity | 1 |
