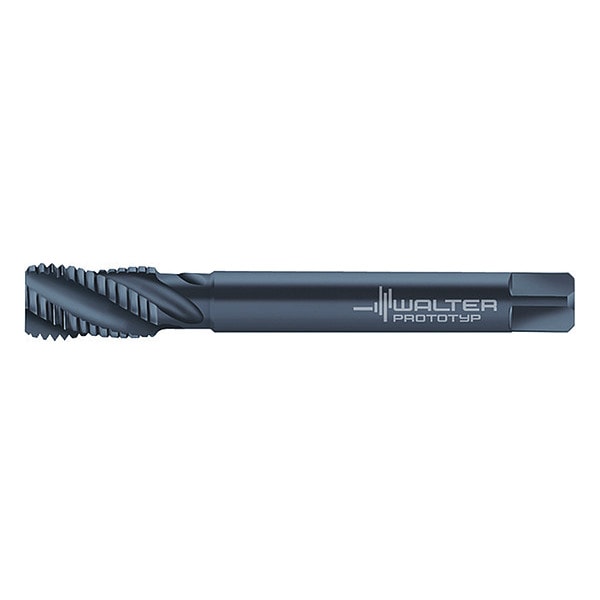

Spiral Flute Tap, M30-3.50, Plug, Metric Coarse, 5 Flutes, Steam Oxide
| Item | Spiral Flute Tap |
|---|---|
| Tap Thread Size | M30-3.50 |
| Tap Chamfer | Plug |
| Tap Thread Type | Metric Coarse |
| Number of Flutes | 5 |
| Tap Finish | Steam Oxide |
| Thread Length | 35 mm |
| Tap Style | Spiral Flute |
| Shank Dia. | 22 mm |
| Standards | DIN 376 |
| Tap Material | High Speed Steel |
| Overall Length | 180 mm |
| Tap Dimension Type | Metric |
| Thread Direction | Right Hand |
| Tap Size | M30 |
| Cutting Direction - Machining | Right Hand |
| Series | Paradur X.pert M |
| 75% Thread Drill Size | 26.59mm |
| Helix Angle | 40 deg |
| Secondary Material Application ISO Code | P |
| Coolant Fed | Non-Coolant Through |
| Thread Standard | Metric Coarse |
| Thread Limit | 6HX |
| Tap Shank Standard | DIN 376 |
| Square Size | 18 mm |
| Primary Material Application | Stainless Steel |
| Drill Bit Size | 26.5 mm |
| 65% Thread Drill Size | 27.04 mm |
| Extended Neck | Yes |
| Spiral Direction | Right Hand |
| Thread Pitch | 3.5 mm |
| Shank Length | 65 mm |
| Shank Type - Machining | Straight |
| Thread Size | M30x3.5 |
| Secondary Material Application | Steel |
| Primary Material Application ISO Code | M |
| Material Grade - Machining | VAP |
| Measurement System | Metric |
| List Number | M20563 |
| Number of Pieces | 1 |
| Pitch Diameter Limit | 6HX |
| Package Quantity | 1 |
