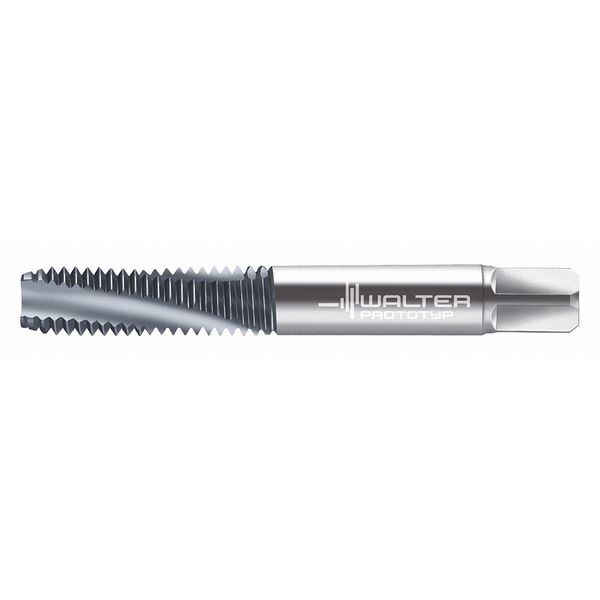

Spiral Flute Tap, Plug 3 Flutes
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 3-1/16 in |
| Tap Style | Flute |
| Shank Dia. | 3/8 in |
| Tap Chamfer | Plug |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | 3/8" |
| Number of Flutes | 3 |
| Thread Length | 1-3/16 in |
| Tap Thread Type | UNC |
| Thread Direction | Right Hand |
| Standards | ANSI B94.9 |
| Pitch Diameter Limit | 3B |
| Tap Thread Size | 3/8"-16 |
| List Number | A2240876 |
| Tap Finish | TiCN |
| Number of Pieces | 1 |
| Cutting Direction - Machining | Right Hand |
| Features | For Long Chipping Materials |
| Series | Paradur Ni 10 |
| Thread Size | 3/8"-16 |
| Threads per Inch | 16 |
| Shank Type - Machining | Straight |
| Shank Length | 28.1 mm |
| Spiral Direction | Right Hand |
| Tap Shank Standard | ANSI B94.9 |
| 65% Thread Drill Size | P |
| Secondary Material Application | Aluminum, Brass, Bronze, Copper |
| Secondary Material Application ISO Code | N |
| Primary Material Application | Titanium, Nickel, Steel |
| Drill Bit Size | 0.3150 in |
| Thread Limit | H3, H4 |
| Extended Neck | No |
| Primary Material Application ISO Code | P, S |
| Class of Fit | 3 B |
| 75% Thread Drill Size | 5/16 in |
| Coolant Fed | Non-Coolant Through |
| 55% Thread Drill Size | 8.4 mm |
| Measurement System | Fractional Inch |
| Square Size | 7.26 mm |
| Helix Angle | 10 deg |
| Thread Standard | UNC |
| Package Quantity | 1 |
