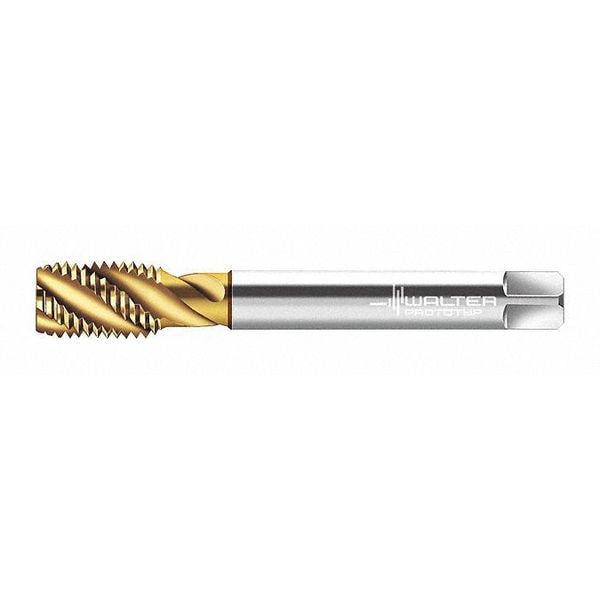

Spiral Flute Tap, Plug 3 Flutes
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 110 mm |
| Tap Style | Flute |
| Shank Dia. | 12 mm |
| Tap Chamfer | Plug |
| Tap Dimension Type | Metric |
| Tap Material | High Speed Steel |
| Tap Size | M16 |
| Number of Flutes | 3 |
| Thread Length | 20 mm |
| Thread Direction | Right Hand |
| Tap Thread Size | M16-2.00 |
| Standards | DIN 376 |
| Tap Finish | TiN |
| Tap Thread Type | Metric Coarse |
| Cutting Direction - Machining | Right Hand |
| Series | Perform |
| Shank Type - Machining | Straight |
| Primary Material Application ISO Code | P, M, K |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Square Size | 9 mm |
| Drill Bit Size | 14.00mm |
| Measurement System | Metric |
| 55% Thread Drill Size | 14.5 mm |
| Thread Limit | D5, D6 |
| 75% Thread Drill Size | 14.00mm |
| Secondary Material Application | Aluminum, Brass, Bronze, Copper |
| Coolant Fed | Non-Coolant Through |
| Extended Neck | Yes |
| Tap Shank Standard | DIN 376 |
| Secondary Material Application ISO Code | N |
| Material Grade - Machining | WY80AA |
| Features | For Long Chipping Materials |
| Thread Pitch | 2 mm |
| Shank Length | 42 mm |
| 65% Thread Drill Size | 9/16 in |
| Thread Standard | Metric Coarse |
| Spiral Direction | Right Hand |
| Thread Size | M16x2 |
| Helix Angle | 45 deg |
| Number of Pieces | 1 |
| List Number | TC115-M-L0 |
| Pitch Diameter Limit | 6H |
| Package Quantity | 1 |
