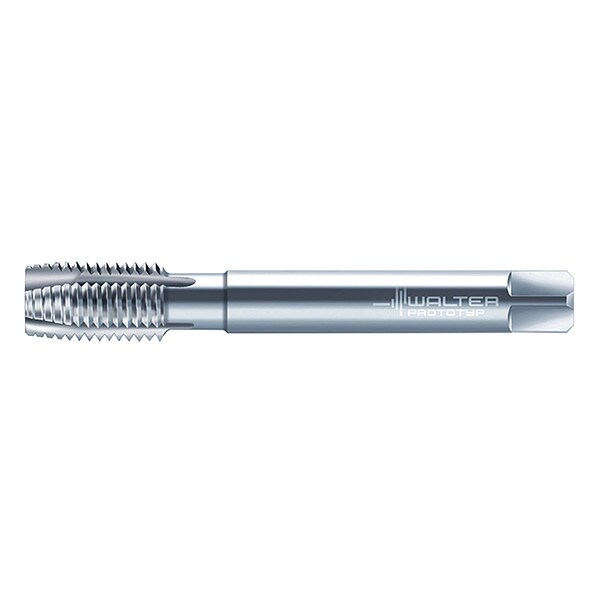

Spiral Point Tap, Bottoming 3 Flutes
| Item | Spiral Point Tap |
|---|---|
| Tap Style | Spiral Point |
| Tap Size | M16 |
| Tap Dimension Type | Metric |
| Tap Material | High Speed Steel |
| Tap Chamfer | Bottoming |
| Overall Length | 100 mm |
| Number of Flutes | 3 |
| Thread Direction | Right Hand |
| Tap Finish | TiN |
| Tap Thread Type | Metric |
| Tap Thread Size | M16-1.5 |
| Drill Bit Size | 14.5 mm |
| Shank Dia. | 12 mm |
| Series | Prototex X.pert P |
| Cutting Direction - Machining | Right Hand |
| Thread Length | 21 mm |
| Spiral Direction | Neutral |
| Secondary Material Application | Aluminum, Brass, Bronze, Composite, Copper |
| Coolant Fed | Non-Coolant Through |
| Primary Material Application ISO Code | P |
| 65% Thread Drill Size | 14.7 mm |
| Thread Limit | 6G |
| Secondary Material Application ISO Code | N, O |
| Thread Standard | Metric Fine |
| Primary Material Application | Steel |
| Thread Pitch | 1.5 mm |
| Square Size | 9 mm |
| Measurement System | Metric |
| Shank Length | 42 mm |
| 55% Thread Drill Size | 14.9 mm |
| Extended Neck | Yes |
| Thread Size | M16x1.5 |
| 75% Thread Drill Size | 14.5 mm |
| Shank Type - Machining | Straight |
| Class of Fit | 2B |
| Helix Angle | 0 deg |
| Package Quantity | 1 |
