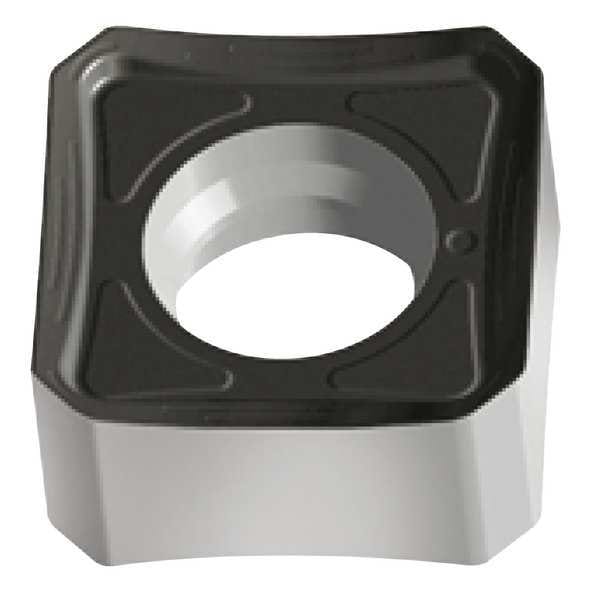

Square SNGX Carbide
| Item | Square Milling Insert |
|---|---|
| Insert Style | SNGX |
| Insert Shape | Square |
| Insert Size | 1,205 |
| Insert Material | Carbide |
| Corner Radius | 1/32 in |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Insert Thickness | 0.252 in |
| Super Alloy (S) Compatibility | No |
| Rake | Negative |
| Inscribed Circle | 1/2 in |
| Cutting Direction | Right Hand |
| Coating | CVD |
| Grade | WKP25S |
| Stainless (M) Compatibility | No |
| ANSI Number | SNGX1205ANN-F27 WKP25S |
| Non Ferrous (N) Compatibility | No |
| Chip-Breaker | Yes |
| Cast Iron (K) Compatibility | Yes |
| Mounting Style | Screw Held |
| Steel (P) Compatibility | Yes |
| No. of Edges | 8 |
| For Use With | F2339 Ball Nose Mill |
| Hardened (H) Compatibility | No |
| Nose Radius | 0.059 in |
| Insert Application | Roughing |
| ISO Number | SNGX1205ANN-F27 WKP25S |
| Chip-Breaker Style | 16 deg (Chipbreaker Groove) |
| Number of Cutting Edges | 4 |
| Cutting Application | Milling |
| Clearance Angle | 0 deg |
| Primary Material Application | Cast Iron, Steel |
| Coating Process | CVD |
| Primary Material Application ISO Code | P, K |
| Included Angle | 90 deg |
| Chip-Breaker Code | F27 |
| ANSI Code | SNGX1205ANN-F27 WKP25S |
| For Toolholder | F2339.T14.016.Z02.11, F2339.T18.020.Z02.15, F2339.T22.025.Z02.20, F2339.T28.030.Z02.24, F2339.T28.032.Z02.25, F2339.T36.040.Z02.31, F2339.T45.050.Z02.40, F2339.W16.016.Z02.11, F2339.W20.020.Z02.15, F2339.W25.025.Z02.20, F2339.W32.030.Z02.24, F2339.W32.032.Z02.25, F2339.W40.040.Z02.31 |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Feed Type | High |
| Measurement System | Metric |
| Shape | Square |
| Material - Machining | Carbide |
| Cutting Edge Length | 12.7 mm |
| Manufacturer Grade | WKP25S |
| Wiper Insert | Yes |
| Insert Holding Type | Screw Held |
| Thickness | 0.252 in |
| Package Quantity | 1 |
