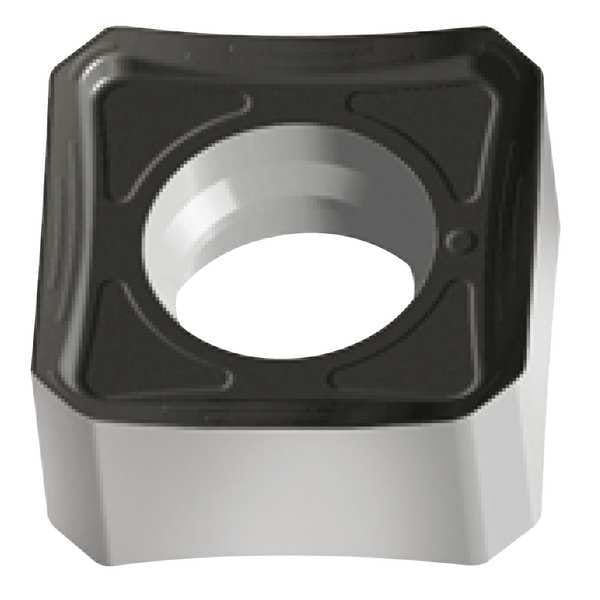

Square SNGX Carbide
| Item | Square Milling Insert |
|---|---|
| Insert Style | SNGX |
| Insert Shape | Square |
| Insert Size | 1,205 |
| Insert Material | Carbide |
| Corner Radius | 1/32 in |
| Stainless (M) Compatibility | No |
| Grade | WAK15 |
| Super Alloy (S) Compatibility | No |
| Rake | Negative |
| Workpiece Compatibility | Cast Iron (K) |
| Steel (P) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Chip-Breaker | Yes |
| Cast Iron (K) Compatibility | Yes |
| ANSI Number | SNGX1205ANN-F67 WAK15 |
| Nose Radius | 0.059 in |
| Coating | CVD |
| For Use With | F2010 Face Milll |
| Insert Application | Medium |
| Hardened (H) Compatibility | No |
| Mounting Style | Screw Held |
| Insert Thickness | 0.252 in |
| Inscribed Circle | 1/2 in |
| No. of Edges | 8 |
| Cutting Direction | Right Hand |
| ISO Number | SNGX1205ANN-F67 WAK15 |
| Finish - Machining | TiCN+Al2O3+TiN |
| Thickness | 0.252 in |
| Coating Process | CVD |
| Clearance Angle | 0 deg |
| Feed Type | Medium |
| Cutting Application | Milling |
| Primary Material Application ISO Code | K |
| Shape | Square |
| Chip-Breaker Code | F67 |
| Manufacturer Grade | WAK15 |
| Wiper Insert | Yes |
| Chip-Breaker Style | 16 deg (Chipbreaker Groove) |
| Measurement System | Metric |
| Number of Cutting Edges | 4 |
| Material - Machining | Carbide |
| Included Angle | 90 deg |
| ANSI Code | SNGX1205ANN-F67 WAK15 |
| Insert Holding Type | Screw Held |
| Cutting Edge Length | 12.7 mm |
| For Toolholder | F2010.B.080.Z06.10.R441M, F2010.B.100.Z07.10.R441M, F2010.B.125.Z08.10.R441M, F2010.B.160.Z10.10.R441M, F2010.B.200.Z12.10.R441M, F2010.B.250.Z12.10.R441M, F2010.B.250.Z16.10.R441M, F2010.B.315.Z14.10.R441M, F2010.B.315.Z18.10.R441M, F2235.B.050.Z04.10, F2235.B.063.Z05.10, F2235.B.080.Z06.10, F2235.B.100.Z07.10, F2235.W.032.Z02.10, F2235.W.040.Z03.10 |
| Primary Material Application | Cast Iron |
| Package Quantity | 1 |
