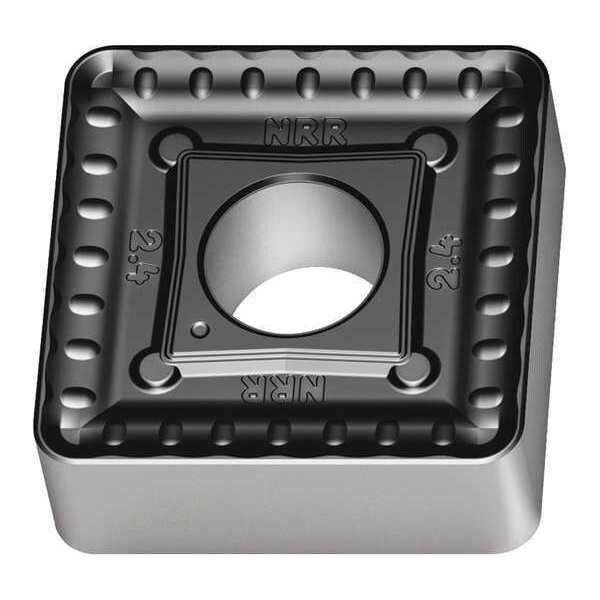

Square Turning Insert, Square, 1, SNMM, 6, Carbide
| Item | Square Turning Insert |
|---|---|
| Insert Shape | Square |
| Insert Style | SNMM |
| Inscribed Circle | 1 |
| Insert Size | 866 |
| Chip-Breaker | Yes |
| Grade | WPP10S |
| Corner Radius | 6 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | SNMM250924-NRR |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| No. of Edges | 4 |
| Cast Iron (K) Compatibility | Yes |
| Steel (P) Compatibility | Yes |
| Non Ferrous (N) Compatibility | No |
| Mounting Style | Clamp |
| For Use With | Toolholders, Boring Bars |
| Nose Radius | 0.094 in |
| Stainless (M) Compatibility | No |
| Insert Thickness | 3/8 in |
| Mounting Hole Dia. | 0.359 in |
| ANSI Number | SNMM646 |
| Cutting Direction | Neutral |
| Relief Angle | 0 Degrees |
| Super Alloy (S) Compatibility | No |
| Coating | CVD |
| Hardened (H) Compatibility | No |
| ANSI Code | SNMM866-NRR |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Depth of Cut | 3 to 17 mm |
| Measurement System | Fractional Inch |
| Number of Cutting Edges | 4 |
| Primary Material Application ISO Code | P |
| Primary Material Application | Steel |
| Insert Holding Type | Straight Hole |
| Shape | Square |
| Material - Machining | Carbide |
| Clearance Angle | 0 deg |
| Thickness | 3/8 in |
| Included Angle | 90 Degrees |
| Cutting Application | Turning |
| Cutting Edge Length | 25.4 mm |
| Chip-Breaker Code | NRR |
| Manufacturer Grade | WPP10S |
| Coating Process | CVD |
| Material | Carbide |
| Package Quantity | 1 |
