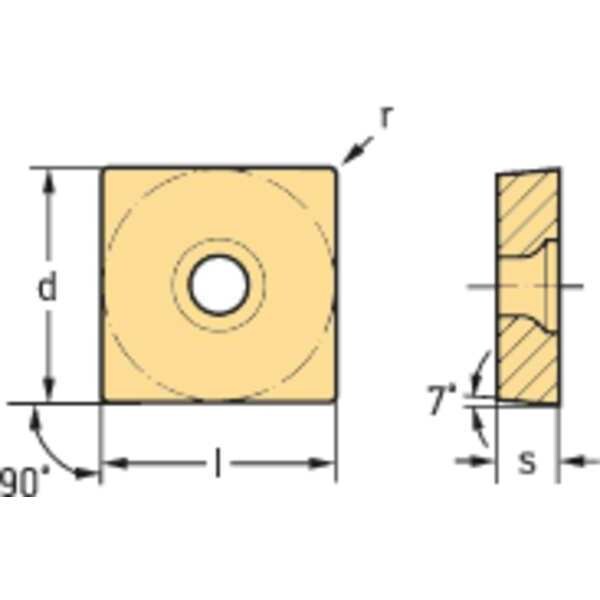

Square Turning Insert, Square, 3, SCGT, 2, Carbide
| Item | Square Turning Insert |
|---|---|
| Insert Shape | Square |
| Insert Style | SCGT |
| Inscribed Circle | 3 |
| Insert Size | 32.52 |
| Chip-Breaker | Yes |
| Grade | WSM01 |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Positive |
| ISO Number | SCGT09T308-MM4 |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | No |
| Relief Angle | 7 Degrees |
| Cutting Direction | Neutral |
| Non Ferrous (N) Compatibility | No |
| Steel (P) Compatibility | No |
| Mounting Style | Screw |
| ANSI Number | SCGT3(2,5)1 |
| No. of Edges | 4 |
| Workpiece Compatibility | Stainless (M), Steel (P), Super Alloy (S) |
| Super Alloy (S) Compatibility | Yes |
| Insert Thickness | 0.156 in |
| Mounting Hole Dia. | 0.173 in |
| Nose Radius | 0.031 in |
| For Use With | Toolholders, Boring Bars |
| Hardened (H) Compatibility | No |
| Coating | PVD |
| Cutting Application | Turning |
| Manufacturer Grade | WSM01 |
| Material - Machining | Carbide |
| Number of Cutting Edges | 4 |
| Cutting Edge Length | 9.53 mm |
| Primary Material Application ISO Code | M, S |
| Primary Material Application | Titanium, Nickel, Stainless Steel |
| Chip-Breaker Code | MM4 |
| Measurement System | Fractional Inch |
| ANSI Code | SCGT3(2.5)2-MM4 |
| Clearance Angle | 7 deg |
| Thickness | 5/32 in |
| Finish - Machining | TiAlN |
| Coating Process | PVD |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Depth of Cut | 0.5 to 3 mm |
| Shape | Square |
| Included Angle | 90 Degrees |
| Material | Carbide |
| Package Quantity | 1 |
