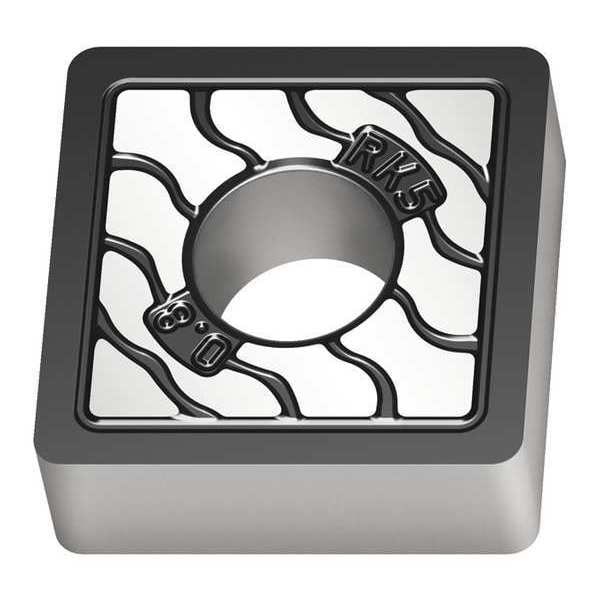

Square Turning Insert, Square, 3, SNMA, 2, Carbide
| Item | Square Turning Insert |
|---|---|
| Insert Shape | Square |
| Insert Style | SNMA |
| Inscribed Circle | 3 |
| Insert Size | 322 |
| Chip-Breaker | Yes |
| Grade | WKK20S |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Negative |
| ISO Number | SNMA090308-RK5 |
| Insert Thickness | 1/8 in |
| Steel (P) Compatibility | No |
| Nose Radius | 0.031 in |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Non Ferrous (N) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Mounting Hole Dia. | 0.15 in |
| Coating | CVD |
| For Use With | Toolholders, Boring Bars |
| Hardened (H) Compatibility | No |
| Relief Angle | 0 Degrees |
| Cutting Direction | Neutral |
| No. of Edges | 4 |
| ANSI Number | SNMA432 |
| Mounting Style | Clamp |
| Super Alloy (S) Compatibility | Yes |
| Cutting Edge Length | 9.53 mm |
| Clearance Angle | 0 deg |
| Manufacturer Grade | WKK20S |
| Measurement System | Fractional Inch |
| Material - Machining | Carbide |
| Coating Process | CVD |
| Chip-Breaker Code | RK5 |
| Depth of Cut | 0.6 to 4 mm |
| Primary Material Application ISO Code | K |
| Shape | Square |
| ANSI Code | SNMA322-RK5 |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Insert Holding Type | Straight Hole |
| Thickness | 1/8 in |
| Primary Material Application | Cast Iron |
| Included Angle | 90 Degrees |
| Cutting Application | Turning |
| Number of Cutting Edges | 4 |
| Material | Carbide |
| Package Quantity | 1 |
