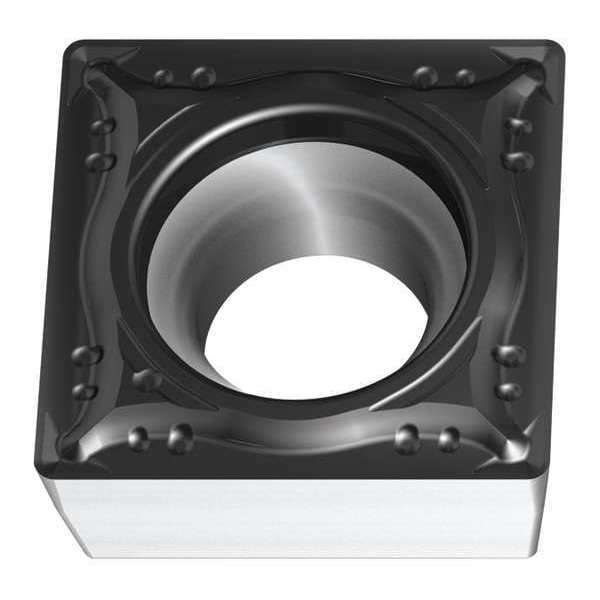

Square Turning Insert, Square, 4, SCGT, 2, Carbide
| Item | Square Turning Insert |
|---|---|
| Insert Shape | Square |
| Insert Style | SCGT |
| Inscribed Circle | 4 |
| Insert Size | 432 |
| Chip-Breaker | Yes |
| Grade | WKK20S |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Positive |
| ISO Number | SCGT120408-MK4 |
| Coating | CVD |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Mounting Hole Dia. | 0.217 in |
| Super Alloy (S) Compatibility | Yes |
| Nose Radius | 0.031 in |
| ANSI Number | SCGT3(2,5)1 |
| Steel (P) Compatibility | No |
| For Use With | Toolholders, Boring Bars |
| Non Ferrous (N) Compatibility | No |
| No. of Edges | 4 |
| Stainless (M) Compatibility | Yes |
| Relief Angle | 7 Degrees |
| Mounting Style | Screw |
| Cutting Direction | Neutral |
| Cast Iron (K) Compatibility | No |
| Insert Thickness | 0.188 in |
| Hardened (H) Compatibility | No |
| ANSI Code | SCGT432-MK4 |
| Clearance Angle | 7 deg |
| Cutting Application | Turning |
| Depth of Cut | 0.5 to 3.5 mm |
| Cutting Edge Length | 12.7 mm |
| Coating Process | CVD |
| Primary Material Application | Cast Iron |
| Shape | Square |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Included Angle | 90 Degrees |
| Number of Cutting Edges | 4 |
| Manufacturer Grade | WKK20S |
| Material - Machining | Carbide |
| Primary Material Application ISO Code | K |
| Chip-Breaker Code | MK4 |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Measurement System | Fractional Inch |
| Thickness | 3/16 in |
| Material | Carbide |
| Package Quantity | 1 |
